What is GPR Survey? Ground Penetrating Radar Explained
Before you dig, cut, or drill into any surface — road, floor, bridge deck, or open ground — you need to know what is underneath. GPR (Ground Penetrating Radar) is the technology that answers that question without a single excavation. It is one of the most underused survey tools in India, and projects that skip it often pay for it later in the form of cut utility lines, collapsed voids, or costly structural surprises.
How GPR Actually Works

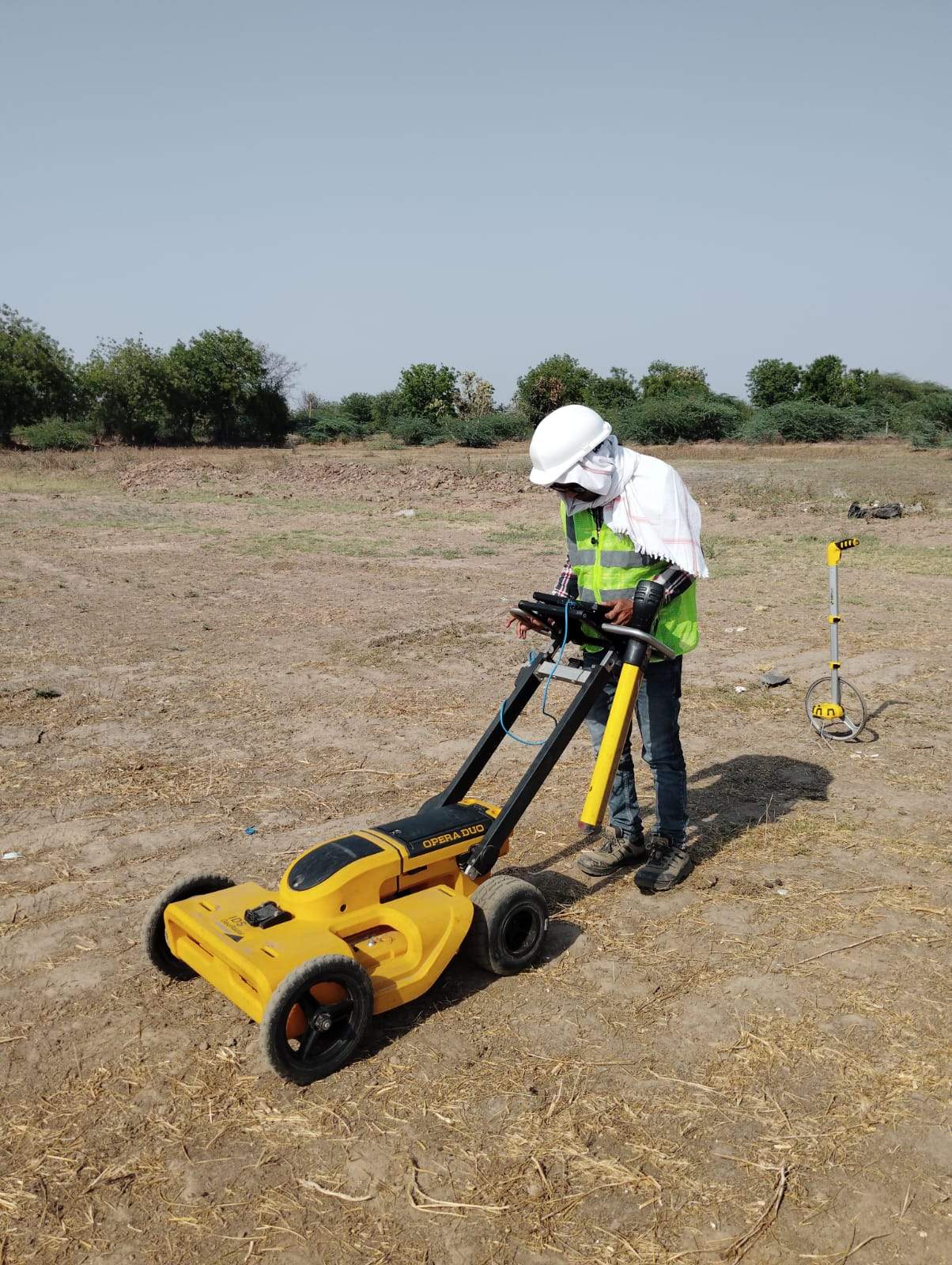

A GPR antenna is pushed or pulled across the surface being scanned. It continuously emits electromagnetic pulses into the ground. When those pulses hit a material boundary — say, a water pipe buried in soil, or a void inside a concrete slab — part of the energy reflects back to the antenna. The system records the strength and timing of every reflection and builds a cross-sectional image of what is below the surface.
A GPR scan cross-section showing a hyperbolic reflection signature — the classic indicator of a buried pipe or utility below the scan surface.
What Can GPR Detect?
When Should You Use GPR?
| Situation | Why GPR is needed |
|---|---|
| Road cutting for utilities | Avoid hitting existing buried services |
| Pile driving near existing structures | Confirm no buried obstructions in pile path |
| Bridge deck inspection | Detect delamination, rebar corrosion, voids |
| Pipeline route survey | Map existing crossing utilities for clearance |
| Building renovation | Locate post-tension cables before any cutting |
GPR is non-destructive, fast, and generates results the same day. For any project where you plan to penetrate or excavate a surface and you do not have complete records of what is underneath, ground subsurface scanning via GPR is the safest first step. The cost of a GPR survey is always a fraction of the cost of repairing a hit utility or collapsed slab.
