What is Topographic Survey and What Does it Include?
Every infrastructure project starts with a topographic survey. Before any road is designed, any building is placed, any canal is routed, or any tower is positioned, engineers need to know the shape of the ground. A topographic survey gives them exactly that: a precise, measured map of the land showing elevations, slopes, natural features, and existing man-made structures. It is the foundation document for all civil engineering design.
What a Topographic Survey Captures
How is a Topographic Survey Done Today?

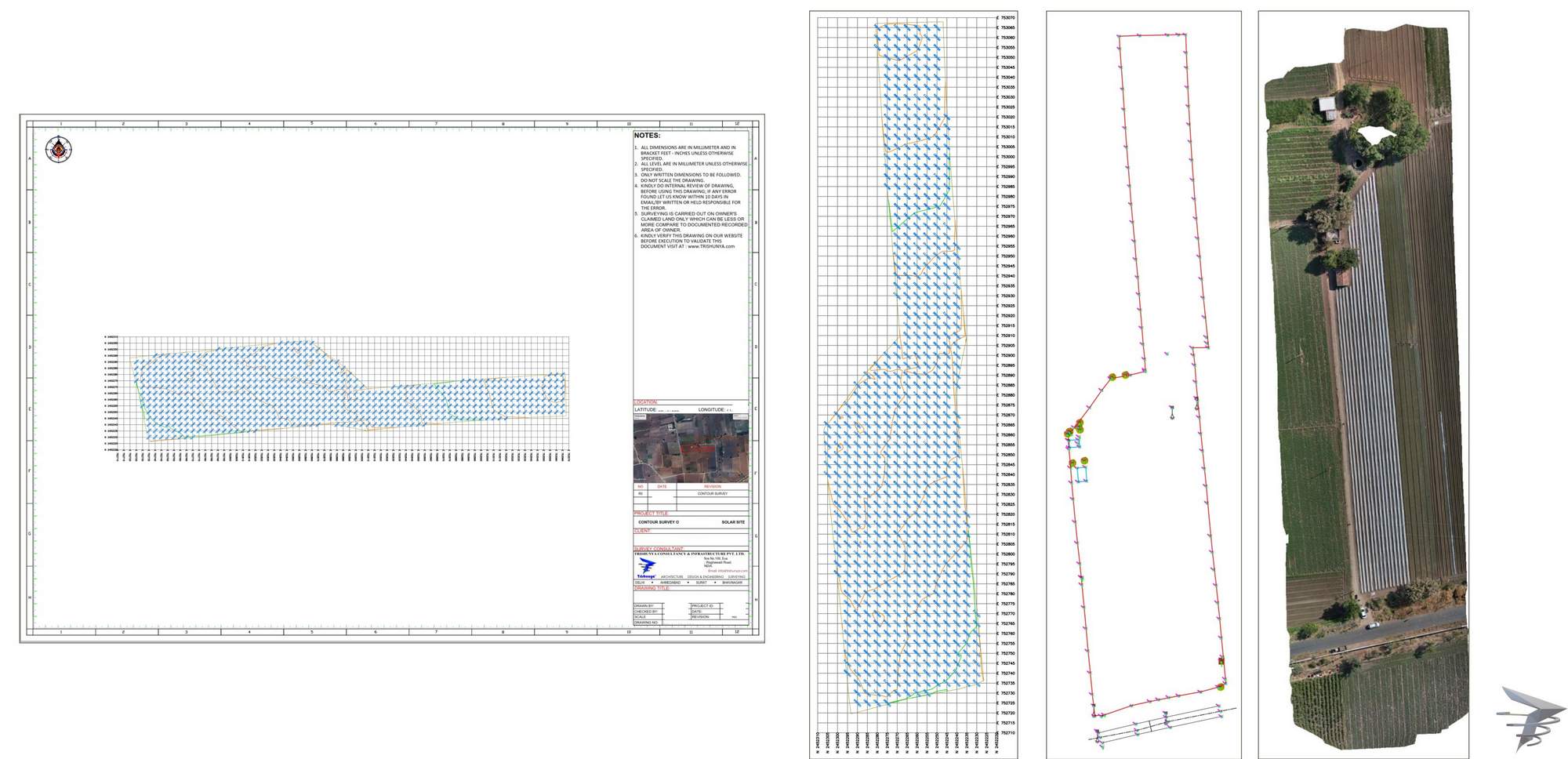

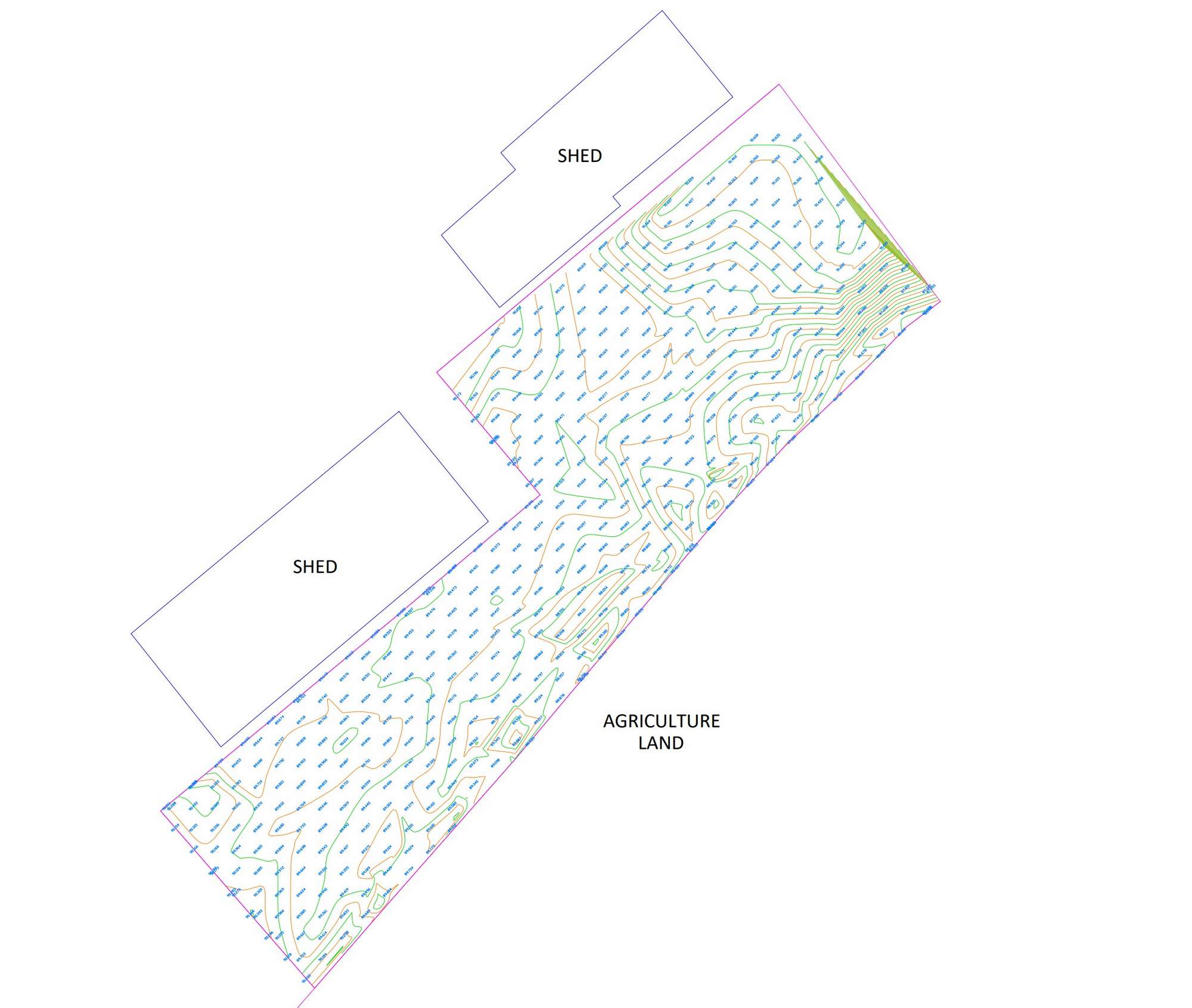

A typical topographic drawing showing contour lines, drainage features, and existing structures. Delivered as AutoCAD DWG for direct use in civil design software.
What Does a Topographic Survey Deliver?
| Deliverable | Format | Used for |
|---|---|---|
| Topography Drawing | AutoCAD DWG | Civil engineering design base |
| Contour Map | DWG / PDF | Slope analysis, earthwork design |
| L/S and Cross-Sections | DWG / PDF | Road, canal, pipeline design |
| DEM / DTM | GeoTiff | GIS analysis, 3D design |
| Feature Layer | SHP / KMZ | GIS databases, planning |
Who Needs a Topographic Survey?
If you are submitting a DPR, planning a linear infrastructure corridor, or starting civil design for any project, you need a topographic survey. Without it, your design team is working with assumptions. Every assumption has a cost attached when it gets corrected during construction.
For linear project surveys like highways, pipelines, and transmission lines, topographic data at corridor scale is the minimum input any design can start from. Contact us with your project extent and we will give you a same-day quote.
