DEM vs DTM: What is the Difference and Which Do You Need?

These two terms come up in almost every drone survey or topographic survey scope of work. They sound similar, and many people use them interchangeably — but they are not the same thing, and using the wrong one in your design can cause real problems. Here is the clear, practical difference.

What is a DEM?

A Digital Elevation Model (DEM) represents the elevation of everything on the earth's surface — ground, trees, buildings, structures, and any other objects. When a drone captures images and they are processed into an elevation raster, the first output is a DEM. It shows the height of whatever the drone saw from above, whether that is bare soil, a forest canopy, a rooftop, or a road.

What is a DTM?

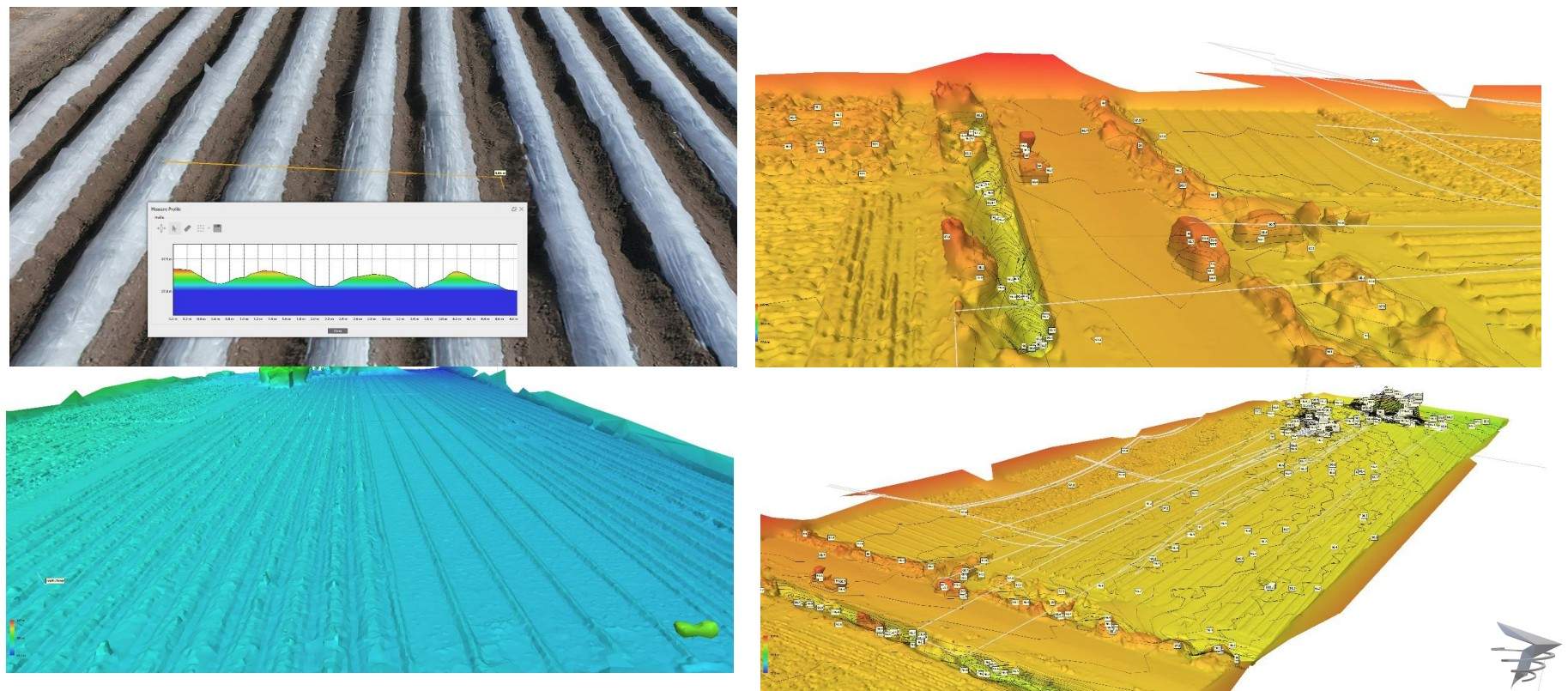

A Digital Terrain Model (DTM) represents only the bare ground surface. Trees, buildings, and above-ground structures have been removed through a ground filtering process. In photogrammetry, this is done by classifying the point cloud and keeping only points that represent actual ground. In LiDAR, this is more accurate because laser pulses physically penetrate vegetation gaps to hit the ground beneath.

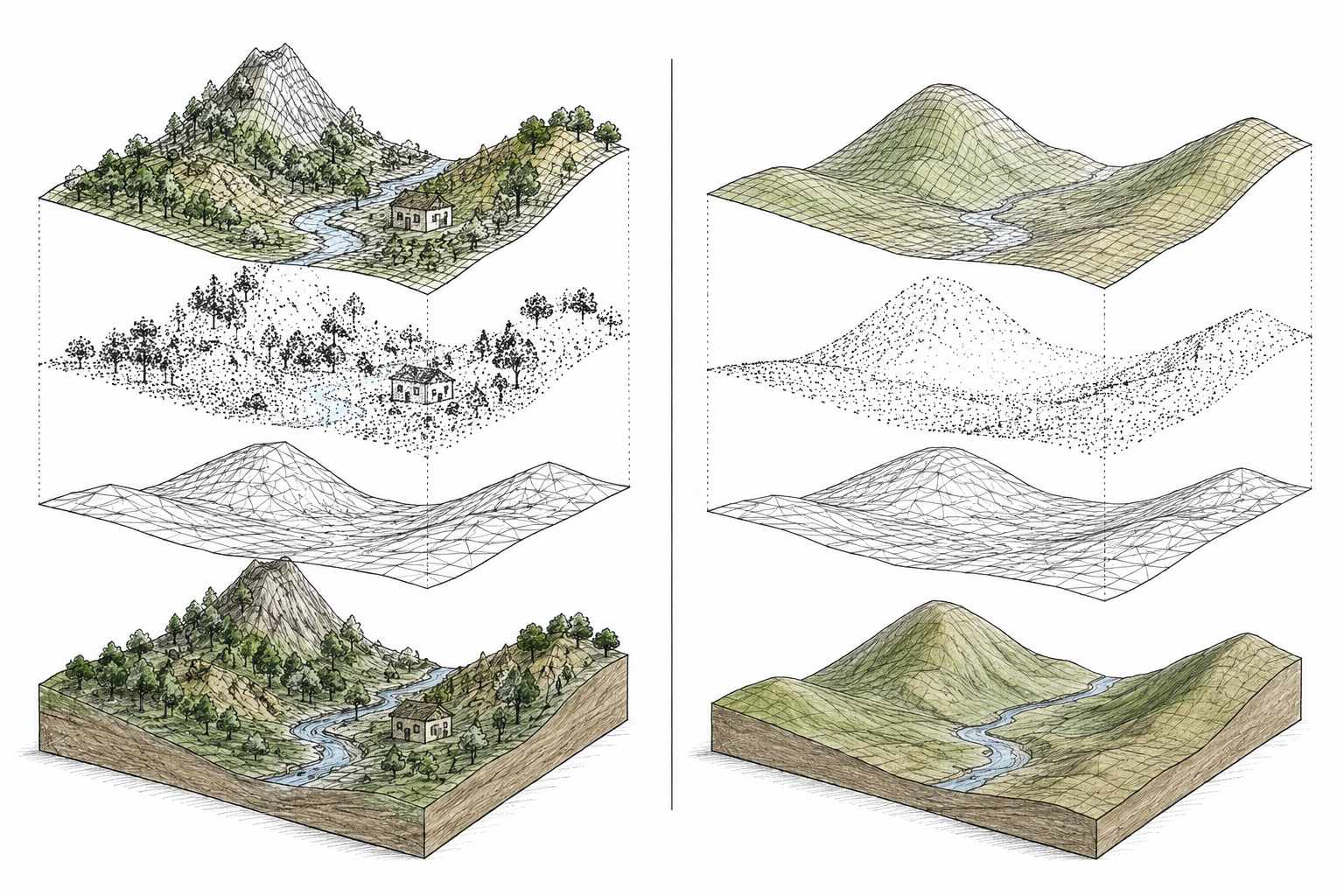

A DTM (left) shows only the ground surface. A DEM (right) includes tree canopy and building heights. Same area, very different data.

Which One Do You Need?

Can You Get Both?

Yes. Most drone surveys deliver both DEM and DTM as standard outputs. The DEM is generated directly from the photogrammetric processing. The DTM is produced from the same data by running a ground classification algorithm on the point cloud. Both come as GeoTiff rasters at the same resolution and coordinate system, ready for use in Civil 3D, ArcGIS, or any other platform.

When you request a drone survey from Trishunya, both DEM and DTM are included as standard deliverables unless your project specifically needs only one. If you are unsure which one your design team needs, send us your project brief and we will advise before you commit to a scope.
