What is Drone Survey and How Does It Work?
A drone survey uses an unmanned aerial vehicle (UAV) equipped with cameras or sensors to capture high-resolution aerial data over a project site. The data is then processed into maps, elevation models, and drawings that engineers, planners, and contractors use for design and construction. It is one of the fastest ways to collect spatial data over large areas, and it has replaced months of ground survey work on many projects across India.
What Equipment is Used in a Drone Survey?
The drone itself carries a payload — the sensor that does the actual data capture. Different payloads produce different outputs:
An RGB camera is the most common payload. It captures overlapping photos that are stitched together using photogrammetry software to create orthomosaics and 3D models. LiDAR sensors emit laser pulses and measure the return time to generate dense point clouds, even through vegetation. Thermal cameras detect heat signatures, useful for solar panel inspection and building energy audits.

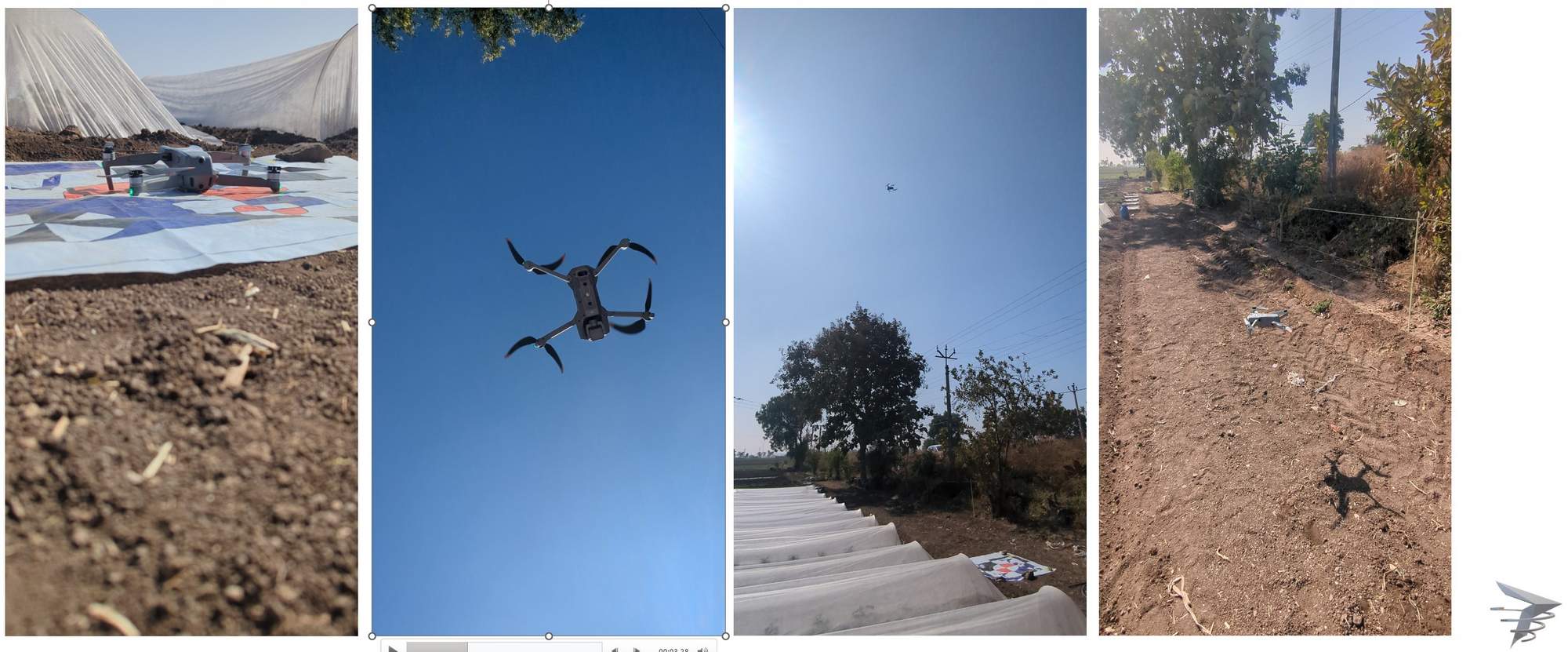

How Does a Drone Survey Actually Work — Step by Step
First, the survey area is mapped in flight planning software. The drone follows a pre-programmed grid pattern at a set altitude, capturing images with 70 to 80 percent overlap. Before flying, Ground Control Points (GCPs) are placed on the ground at known GPS coordinates — these are what tie the aerial photos to real-world coordinates with centimeter accuracy. After the flight, the images are processed in photogrammetry software (Agisoft Metashape or Pix4D) to produce the final deliverables.

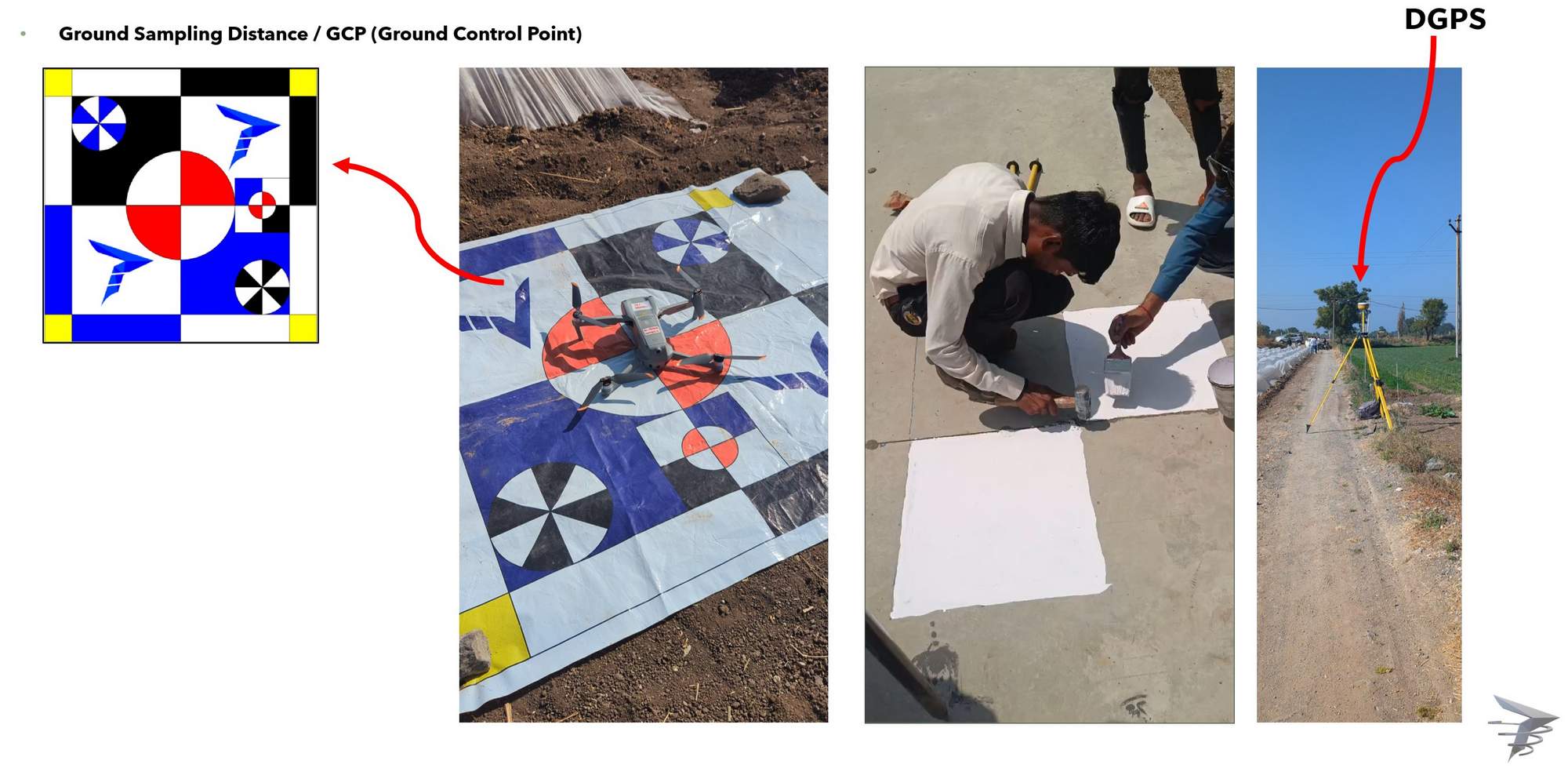

GCPs are placed at measured coordinates before the drone flies. They anchor the aerial data to real-world positions.
What Does a Drone Survey Produce?
| Deliverable | What it is | Common use |
|---|---|---|
| Orthomosaic | Georeferenced aerial image map | Base map for planning and GIS |
| DEM | Digital Elevation Model with all features | Flood analysis, cut/fill |
| DTM | Bare-earth terrain model | Road and canal design |
| 3D Mesh | Textured 3D surface model | Inspection, digital twin |
| Topography Drawing | AutoCAD DWG with contours and features | Engineering design |
When Should You Use a Drone Survey?
- Small area under 0.5 km²
- Heavy tree cover everywhere
- Millimeter stakeout needed
- Airspace restriction applies
- Area above 1 km²
- Quick turnaround needed
- Difficult terrain access
- Multiple deliverables needed
For most infrastructure, energy, and urban projects in India, drone survey is now the standard first step. It gives engineers a complete spatial picture of the site before any design begins, and it does it faster and cheaper than any ground-based method for areas above a few square kilometers.
If you are planning a survey and want to know whether drone survey is the right approach for your project, learn more about our drone survey services or send us your project details directly.
