What is Bathymetric Survey? Underwater Mapping Explained
You can survey a road, a forest, a building. But how do you survey the bottom of a dam reservoir that is 40 metres deep and 3 kilometres wide? That is exactly what bathymetric survey does. It is the science of measuring and mapping water body depths, and it is an essential input for dam safety assessments, irrigation planning, dredging projects, and capacity estimation across India.
How Bathymetric Survey Works

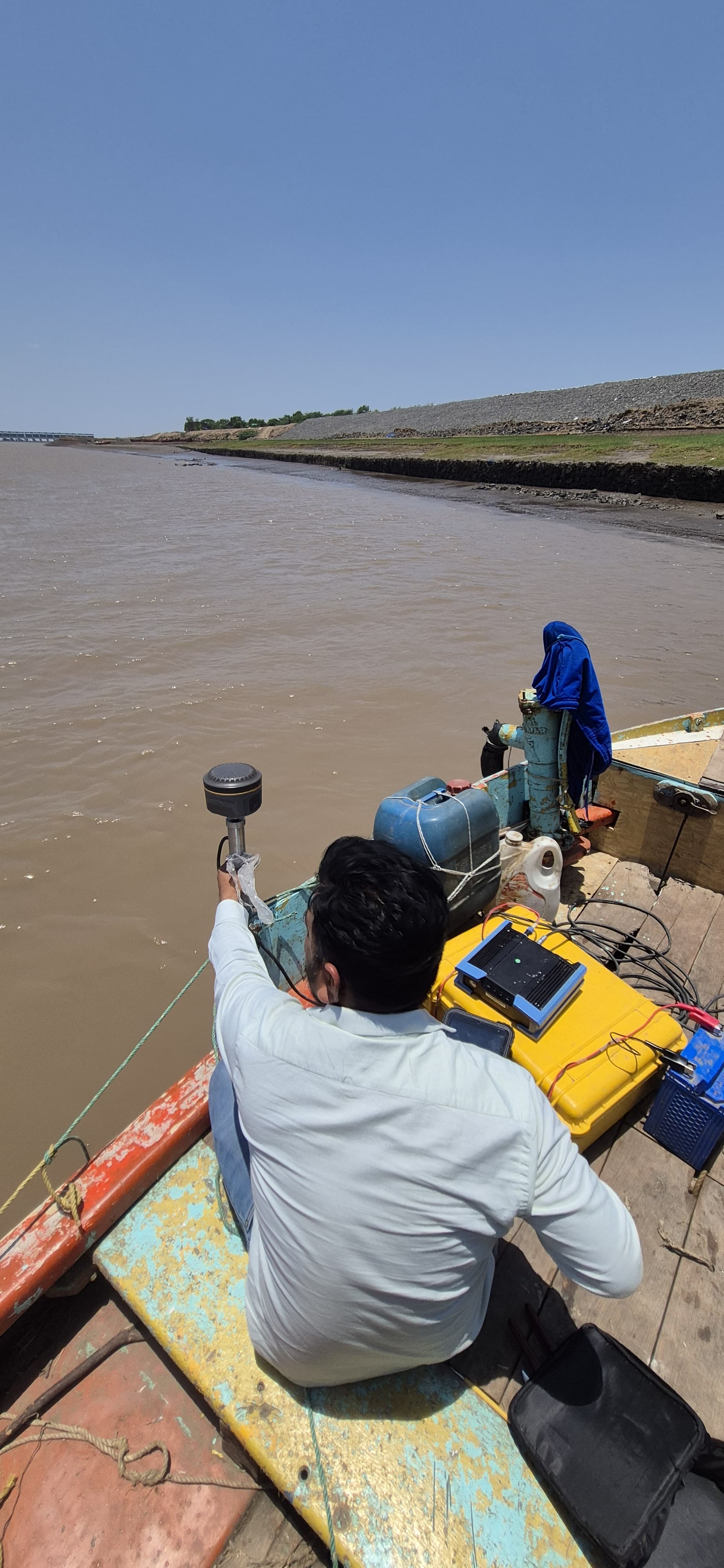

A single beam echo sounder (SBES) is mounted on a survey boat. The sounder emits acoustic pulses straight down into the water. The pulse travels to the bed, reflects off it, and returns to the sensor. Since the speed of sound in water is known, the system calculates the exact depth at that point. Meanwhile, a DGPS receiver on the boat records the boat's precise position for every depth measurement taken.
What a Bathymetric Survey Produces
| Deliverable | What it shows | Used for |
|---|---|---|
| Depth Contour Map | Underwater topography as contour lines | Design, navigation, safety |
| L/S Profile Sheets | Cross-sections along survey lines | Capacity calculation, dredging |
| Silt Volume Report | Volume of accumulated sediment | Desilting prioritisation |
| Capacity Curve | Storage volume at each water level | Reservoir operation planning |
| Tidal Level Data | Water level variation during survey | Coastal and tidal projects |
A depth contour map produced from bathymetric survey data. Darker areas indicate greater depth. Used directly for reservoir capacity calculation.
Who Needs Bathymetric Survey?
If your project involves any water body — dam, canal, river, lake, or coastal area — and you need to understand what is happening underwater, a bathymetric survey is the starting point. It is the only way to get ground truth on what the bed actually looks like.
