Measuring Height Without a Spirit Level
Traditional levelling uses a spirit level and a levelling rod, sighting a perfectly horizontal line between two points to find the height difference between them. It's reliable, but painfully slow across long distances or rough terrain. Trigonometric levelling solves the same problem differently: measure a slope distance and a vertical angle, and simple trigonometry gives you the height difference instantly.
This single technique is arguably the total station's most quietly powerful contribution to modern surveying. In areas with significant relief, hills, valleys, uneven ground, it can match the accuracy of traditional differential levelling while covering ground far faster.
Try It: Calculate the Height Difference
Adjust the slope distance and vertical angle below to see how trigonometric levelling arrives at an elevation difference, using nothing but a triangle.
⛰️ Elevation Calculator
The Formula Behind the Slider

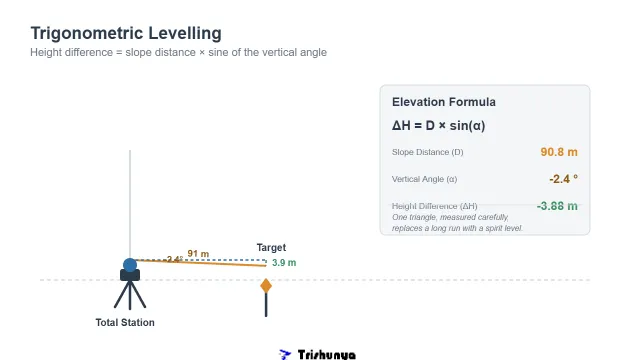

Strip away the correction factors and the core relationship is simple: height difference equals slope distance multiplied by the cosine of the zenith angle, or the sine of the vertical angle from horizontal, depending on how the instrument defines it. Add the instrument height and subtract the target height, and you get the elevation difference between the ground points beneath the instrument and the target.
Why Reciprocal Readings Matter
Measuring the same line from both ends and averaging the results cancels out curvature and refraction error, the two effects that grow most noticeable over longer sight distances.
Why Sight Distance Is Capped
Keeping sight lines under roughly 300 metres reduces atmospheric-related error and improves the reliability of the vertical angle itself, both of which degrade over longer distances.
Field Discipline That Makes the Difference
Achieving genuine second or third-order accuracy isn't just about the instrument. It requires careful setup and levelling, face one and face two observations, multiple readings averaged together, and instrument protection from direct sun and wind. Skip any of these, and the theoretical accuracy of the method quietly evaporates.
This technique underpins accurate DEM generation on hilly or uneven sites, and it's a core part of how our Construction Project teams establish elevation control quickly across large or difficult terrain without laying out a full differential level run.
Common Questions
For third-order work, yes, comfortably. First-order accuracy is technically achievable too, but the procedures involved are demanding enough that they're rarely used in routine practice.
Both affect the atmospheric correction applied to distance measurements, which in turn affects the calculated height difference, particularly over longer sight lines.
Adverse refraction, unpredictable atmospheric bending of the line of sight, especially near the ground on hot days. It's the one error source that's hardest to fully correct for, which is why watching for it matters as much as any formula.
| Factor | Typical Error Contribution |
|---|---|
| Instrument accuracy | Around 3 seconds, random |
| Collimation | Around 3 seconds, systematic |
| Curvature & refraction | Roughly 1.5mm, systematic |
"Trigonometric levelling doesn't fight the terrain. It simply calculates its way over it."
Next time a survey team covers a hillside site in a fraction of the time a spirit level run would take, without sacrificing the accuracy that elevation data needs, trigonometric levelling is almost certainly the reason. One triangle, measured carefully, standing in for what used to be a long, patient walk with a level and a rod.
