Micro Optical Theodolites: Reading Angles to the Second
Ask a surveyor to read an angle to the nearest degree, and any protractor will do. Ask them to read it to the nearest second, 1/3600th of a degree, and you need something far more clever than a scale and a pointer. That is exactly what a micro optical theodolite was built to do, decades before digital displays existed.
Instruments like the classic Wild T2 read directly to 0.1 seconds of arc, and by careful estimation, to about half a second. The trick behind that precision is not a bigger scale, it is a small rotating glass wedge called a micrometer, paired with a reading technique called coincidence.
How Coincidence Reading Works

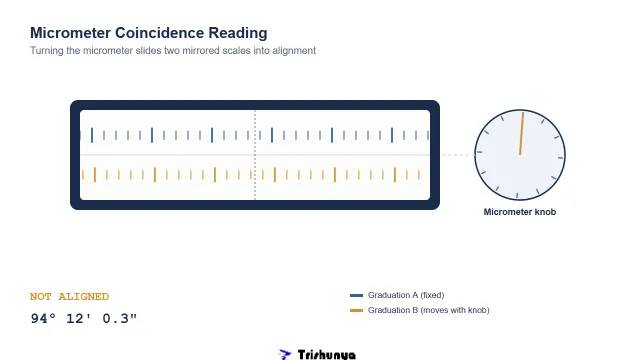

Inside the reading microscope, images of two diametrically opposite parts of the horizontal or vertical circle are shown together in the top window, separated by a fine line. The actual graduation interval on the circle is 20 minutes, but because both opposite sides of the circle are shown at once, coincidence between the two sets of lines occurs every 10 minutes.
The surveyor turns the micrometer knob until those two graduation images slide into exact coincidence. Once aligned, the whole degree and tens-of-minutes value appears in the central window, and the exact minutes and seconds are read off the micrometer scale in the bottom window, each scale interval worth just 1 second of arc.
Try It: Bring the Scale Into Coincidence
🔬 Micrometer Coincidence Simulator
Drag the slider to turn the micrometer knob. Slide the two graduation images together until they align exactly, just like reading a real Wild T2 theodolite.
Current angle: 94° 12' 00.0"
This example mirrors the book's own worked reading: 94°12'44", the whole degree (94°) read from the central window, the tens-of-minutes (10') indicated by the triangular index, and the final 2'44" read from the micrometer scale itself. Slide the simulator above until the lines merge and you will land close to that same value.
Why Face Left and Face Right Both Matter
Every serious angle observation with a micro optical theodolite is taken twice, once with the telescope in face left, once transited to face right. Averaging the two readings cancels out the horizontal collimation error automatically, the small deviation from a perfect right angle between the line of sight and the telescope's tilting axis. This is exactly why a precise control network survey insists on both-face observation as standard procedure, not an optional extra.
A theodolite does not need to be perfectly adjusted. It needs to be perfectly averaged, face left against face right, every single time.
The same logic extends to vertical angles. Reading in both faces and averaging cancels the vertical collimation error too, which is why the sum of the face-left and face-right zenith readings should always come out close to a fixed constant, any consistent departure reveals exactly how much index error the instrument is carrying.
From Angles to Distance: Tacheometry
The same telescope doubles as a rough distance-measuring tool through its stadia hairs. Read the staff intercept between the upper and lower stadia lines, multiply by the instrument's stadia constant, typically 100, and correct for the vertical angle, and you get a usable horizontal distance without any EDM at all. It is not millimetre-precise, but for reconnaissance and cross-sections on a topographic mapping job, it remains a fast, reliable backup method.
Quick Check: Test Yourself
🎯 Why are angles read in both face left and face right?
Frequently Asked Questions
A micro optical theodolite uses a micrometer and direct-reading microscope for angle readings, generally achieving much finer precision than the simpler scale-and-pointer system used in vernier theodolites.
Coincidence refers to aligning two mirrored images of opposite circle graduations exactly on top of each other by turning the micrometer knob, which is how the precise minutes and seconds value is determined.
The internal optical path of the telescope produces an image that is inverted and laterally reversed, a normal characteristic of this instrument design that surveyors are trained to account for.
It is the deviation of the line of sight from being perfectly perpendicular to the telescope's tilting axis. Reading angles on both face left and face right and averaging the results eliminates its effect.
Yes, through tacheometry. Reading the staff intercept between the stadia hairs and applying the stadia constant, usually 100, along with the vertical angle, gives a usable horizontal distance without any electronic distance measurement.
