If you've ever wondered why drone survey apps default to roughly 60 to 70% front overlap and 30% side overlap without asking why, here's the answer: those numbers were worked out decades ago in traditional aerial photogrammetry, and they've survived into the drone era because the underlying geometry hasn't changed one bit.

Overlap isn't a safety margin added out of caution. It's a hard mathematical requirement, without it, large parts of the photographed area simply wouldn't be usable for mapping at all.

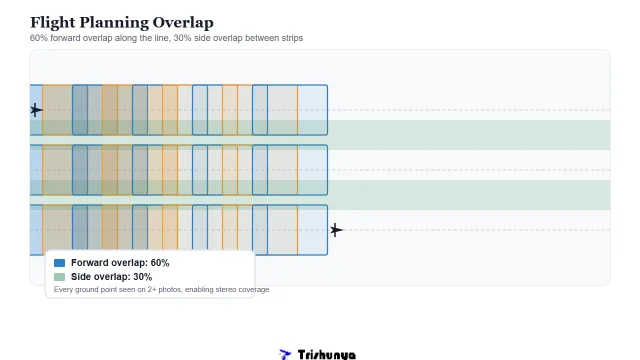

➡️ Forward Overlap: The 50/60/80 Rule

The mathematical minimum forward overlap to guarantee every point appears on two photos is 50%. Standard practice pushes that to 60%, adding a 10% buffer against altitude drift and aircraft tip and tilt during flight. For particularly relief-heavy or demanding terrain, that overlap can climb as high as 80%, trading roughly double the photograph count for far cleaner central-portion coverage that's least affected by relief displacement.

↕️ Side Overlap: Closing the Gaps Between Strips

Forward overlap alone isn't enough, because a single flight line only covers a narrow strip of ground. Adjacent flight lines need their own overlap too, standardized at 30%, made up of a 25% mathematical minimum plus a 5% allowance for the same altitude and tilt variations that affect forward overlap. This side overlap is what guarantees there are no unphotographed gaps between strips.

🧮 The Four Real Reasons for Overlap

It's tempting to think overlap exists just to be safe, but each percentage point is doing specific, deliberate work: correcting for lens and tilt distortion that's worst near photo edges, letting adjacent strips connect through shared control points, enabling stereoscopic 3D viewing of the overlapped area, and giving each ground feature three to four separate chances to be captured cleanly, so a single distorted frame doesn't force an expensive re-flight.

Overlap isn't wasted photography. It's the redundancy that turns a stack of flat photos into a measurable three-dimensional model of the ground.

From the Field

On linear survey projects, like pipeline or transmission line corridors that run for kilometers, flight line planning around correct overlap percentages is what keeps the whole mission efficient. Too little overlap risks unusable stereo coverage and forces a costly re-flight; too much overlap balloons the photo count and processing time without adding real value. Getting that overlap number matched to the terrain and project accuracy needs, before the aircraft or drone even takes off, is one of the most consequential decisions in the entire survey.

Next time a drone survey app quietly defaults to 60/30 overlap without explanation, you'll know exactly why those specific numbers were chosen, and what would break if they weren't.
