Why a Perfect-Looking Reading Can Still Be Wrong
A total station will always give you a clean, confident number on its display, even when that number is wrong. The instrument doesn't know its telescope is warped by sunlight, or that the prism pole isn't quite level, or that the tripod is sitting on ground that's slowly settling under its weight. Every one of those problems still produces a perfectly formatted reading.
This is the uncomfortable truth about electronic survey equipment: precision on the display doesn't guarantee accuracy in the real world. Knowing where errors actually hide is what separates a survey you can trust from one that merely looks trustworthy.
Run the Diagnostic
Before trusting any total station dataset, walk through this checklist. Each item below is a real, documented error source in electronic survey equipment.
🔍 Pre-Survey Error Diagnostic
0 of 6 checks confirmed.
Where These Errors Actually Come From
Circle Eccentricity
Happens when the mechanical center of the instrument doesn't perfectly align with the center of its measuring circle. Reading both faces of the instrument and averaging cancels this out for horizontal angles.

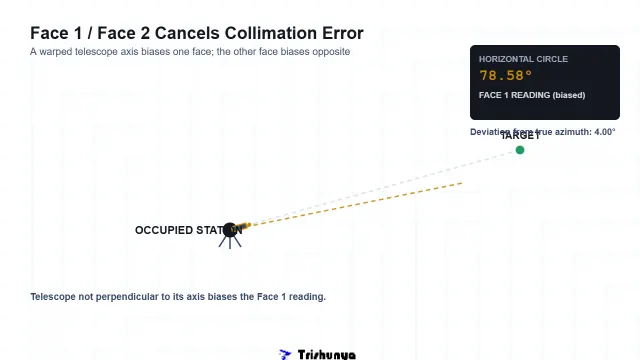

Horizontal Collimation Error
Occurs when the telescope's optical axis isn't perfectly perpendicular to its rotation axis. Detected by comparing face one and face two readings on the same target, they should differ by exactly 180°.
Pointing Errors
Simple human and environmental limits on how precisely a target can be sighted. The fix is unglamorous but effective: repeat the observation and average the results.
Curvature and Refraction
Over longer sight lines, the earth's curvature and atmospheric bending of light both distort elevation readings. Reciprocal measurements from both ends of a line help cancel this out.
The One Habit That Catches Almost Everything
Nearly every error source above shares one countermeasure: repetition and comparison. Face one and face two readings, reciprocal measurements, and periodic back sight rechecks all work on the same principle, if a genuine value is being measured, repeated observations should agree closely. If they don't, something upstream needs investigating before the data gets trusted.
This discipline matters most on precision work like Structural Alignment Check surveys, where a small undetected error can compound into a real structural concern, and it's a standard part of quality control on every Scanning & Inspection project we run.
| Error Source | Standard Countermeasure |
|---|---|
| Circle eccentricity | Average face 1 and face 2 readings |
| Pointing error | Repeat observation, take the average |
| Atmospheric drift | Re-measure temperature/pressure regularly |
| Curvature & refraction | Use reciprocal measurement over long lines |
"An instrument never reports uncertainty. It reports a number. The surveyor's job is knowing when to doubt it."
The next time survey data seems suspiciously clean with zero apparent issues, that's not luck. It's usually the quiet result of a crew that shaded the instrument, checked the prism constant, and re-verified the back sight without anyone outside the process ever noticing the extra few minutes it took.
