Look closely at any tall building near the edge of an aerial photo, not straight down but off to the side, and it appears to lean, its top pushed outward from its base. The building isn't tilted. The camera didn't malfunction. This is relief displacement, and it's one of the most predictable optical effects in all of aerial photography.

It happens on every single vertical aerial photograph ever taken, to some degree. Understanding why is essential to understanding how raw aerial photos get turned into accurate, distortion-free maps.

🎯 The One Point That Never Lies

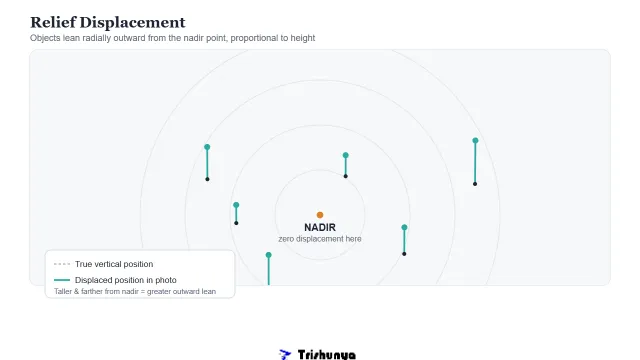

An aerial camera takes what's called a central perspective photograph, every light ray converges through a single point, the lens. Directly below that lens at the moment of exposure sits the nadir point, and this is the one and only spot on the entire photograph where relief displacement is exactly zero. Every other point, the further it sits from the nadir and the taller it is, displaces outward.

Notice the pattern: taller buildings lean more, and buildings farther from the photo's center lean more too, since the radial distance from the nadir point directly drives how much displacement occurs. A single-story shed near the photo center will show almost no lean at all. A high-rise near the photo's edge can appear to lean dramatically.

🌪️ Relief Displacement's Cousin: Tilt Displacement

There's a second, separate source of distortion in aerial photos, and it comes from the aircraft itself. Even a "vertical" aerial photograph is never perfectly vertical, the camera axis deviates slightly due to aircraft motion, and this tilt introduces its own displacement, radiating outward from a different reference point called the isocentre rather than the nadir.

In practice, both effects happen on the same photograph simultaneously. Since locating the exact nadir point or isocentre is genuinely difficult, standard practice substitutes the principal point instead, easily located using fiducial marks, as the practical origin for correcting both displacements. This shortcut, called the radial line assumption, holds up well for tilts under 3 degrees and ground relief under 10% of the flying height.

Nothing about a building changed between the ground and the photograph. Only its position on a flat piece of film did, and that difference is entirely predictable mathematics.

From the Field

On orthomosaic outputs for urban planning clients, correcting for exactly this kind of displacement is what separates a raw aerial photo mosaic from a survey-grade product. An orthomosaic isn't just photos stitched together, it's photos mathematically corrected so that every building, every road edge, every property line sits in its true planimetric position, with the outward lean of tall structures removed entirely. Skip that correction step and area or distance measurements taken near tall buildings can be meaningfully wrong.

The next time you spot a leaning skyscraper in a satellite photo, you'll know the real story: it's not tilted, it's telling you exactly how tall it is and how far it sits from the camera's nadir point, encoded right there in the geometry of the lean.
