Turning a Blueprint Into Physical Stakes on the Ground
A road design exists as coordinates in a computer file long before a single stake goes into the ground. Stakeout is the process that closes that gap: taking the exact X, Y, Z of every design point, curb line, and centerline station, and physically marking where each one belongs on the real, uneven, muddy site.
Total stations changed this process completely. Instead of a printout of angles and distances that a surveyor manually walks out with a tape, modern instruments upload the entire design coordinate set directly into onboard memory, then guide the surveyor to each point in real time.
Try It: Track the Prism to the Design Point

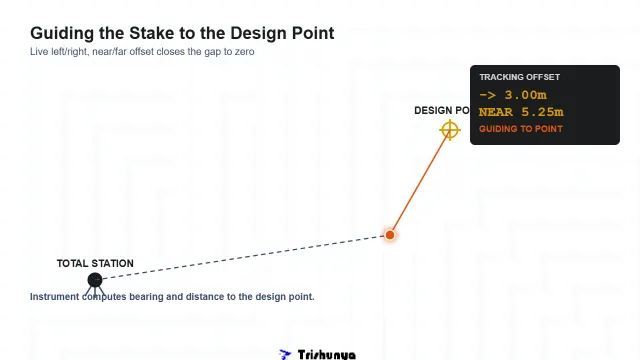

Click anywhere on the grid to move the prism marker toward the design target, exactly how a total station's live left/right and near/far readout guides a rod person on site.
🎯 Live Stakeout Simulator
The Layout Workflow, Simplified
Design Coordinates Uploaded
Every stake point from the road, drain, or foundation design gets loaded into the total station's memory ahead of time.
Instrument Set Up on Control
The total station occupies a known control point and orients to a back sight, exactly as covered in our setup and back sight posts.
Select the Layout Point
The surveyor picks the next design point by number, and the instrument calculates the angle and distance needed to reach it from where it stands.
Track the Prism
In tracking mode, the display shows live left/right and near/far offsets as the rod person moves, until both read 0.000m.
Mark and Repeat
A stake goes in at the confirmed point, and the process repeats for the next design coordinate in the file.
Resection: Setting Up Without a Known Point
Sometimes the ideal instrument position isn't a pre-marked control point at all. Resection solves this: sight two or more known control stations from an arbitrary new position, and the total station calculates its own coordinates from those sightings. Four sightings instead of two adds redundancy and gives a real indication of achieved accuracy, not just a single unverified fix.
This entire workflow underpins Construction Project layout accuracy on everything from foundation grids to full road alignments, and it connects directly to the traverse and back sight fundamentals covered under our Stakeout reference.
| Application | Typical Field Time Saved |
|---|---|
| Topographic surveys | 25% |
| Design layout | 30% |
| As-built verification | 35% |
"A design coordinate means nothing until it's physically on the ground. Stakeout is where the drawing becomes real."
The next time you drive past a construction site and see a row of stakes with flagging tape marking exactly where a curb or foundation edge will sit, that precision came from a total station reading angle and distance in real time, guiding someone's hand to within millimetres of a point that existed only on a computer screen minutes earlier.
