A traditional level makes you squint at fine graduations on a staff, judge the crosshair position by eye, and write the number down by hand. A digital level skips all three steps. Point it at a rod striped in barcode, press one button, and it reads, calculates, and stores the height and distance itself, no eyestrain, no transcription error.

It sounds futuristic, but the trick is simpler than it looks. A digital level is fundamentally still an automatic level, same gravity compensator, same magnetic damping, just paired with a camera-like sensor that recognizes a barcode pattern instead of a person reading numbers.

How the Scan Actually Works

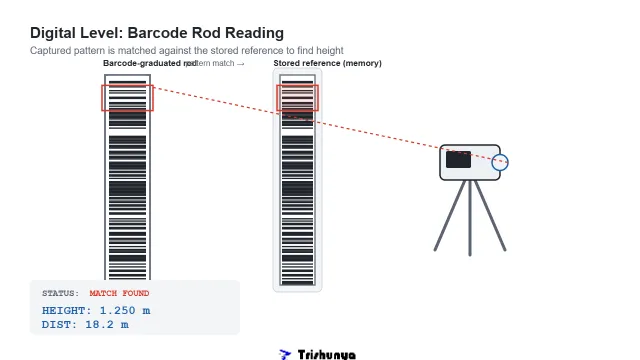

The rod used with a digital level is not marked in ordinary meters and centimeters, it is striped in a unique barcode pattern along its full length, commonly around 4 metres, coded on one or both faces. When the surveyor levels the instrument and presses the measure button, the instrument captures an image of whatever section of barcode is in view.

That captured pattern is then compared against a complete reference image of the entire rod, permanently stored in the level's memory. Because every position on the rod has a unique barcode signature, matching the captured snippet to its location on the reference image tells the instrument exactly where the line of sight is hitting the rod, and from that, both height and horizontal distance are calculated automatically, feeding directly into the same elevation dataset a project's grading model relies on.

Try It: Run a Simulated Scan

What Happens After the Beep

Once processed, typically within about 4 seconds, the digital level displays the height and horizontal distance automatically, and in most models the horizontal angle still needs to be read and logged manually alongside it. Because the coding system mirrors what total stations already use, this leveling data can be transferred directly into a computer database, no manual field-book transcription, no risk of a digit swapped while copying numbers by hand for a construction benchmark or grading survey.

Optical eyes get tired after the fiftieth rod reading of the day. A barcode sensor reads the two-hundredth exactly as precisely as the first.

Spec Sheet: What the Numbers Mean

When the Instrument Says No

Digital levels are built to fail loudly rather than silently. Hold the rod upside down, tilt it off plumb, let the battery run low, or fill up onboard memory, and the instrument flashes a clear error message instead of quietly recording a bad reading. That built-in refusal to guess is one of the underrated safety features of the whole system, it protects the dataset from the kind of subtle transcription mistakes that plague manual rod reading.
