The Journey Your Survey Data Takes After the Field Day Ends
A total station doesn't produce a map. It produces raw numbers: horizontal angle, vertical angle, slope distance, over and over for every point measured. Turning that number stream into a finished topographic drawing is its own process, one most people never see, but it's where hours of manual drafting used to disappear before this became automated.
Understanding this pipeline matters even if you'll never run it yourself, because it explains why a badly coded field day can cost more office hours than a well-planned one saves in the field.

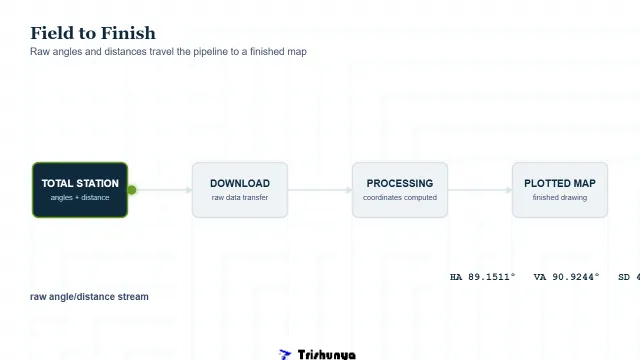

Trace the Data Flow
Click each stage below to see what actually happens to a raw measurement as it moves from the instrument to a finished map.
⚡ Field-to-Finish Pipeline
Why the Old Way Was So Slow
Before this pipeline existed, a surveyor read numbers off a theodolite, wrote them into a field book by hand, and someone else later copied those same numbers into a drafting table. Every single transcription was a chance for a transposed digit to slip through unnoticed. A total station's data collector eliminates this entirely: what the instrument measures is what gets stored, with no manual copy step in between.
📥 Data Gathering
Raw field data downloads via a serial connection, typically at 9600 baud, into a coordinate geometry programme that calculates traverse closures and adjusts values into final X, Y, Z coordinates.
🖨️ Data Plotting
Once processed, the data plots onto a high-resolution screen for review, then to a physical or digital plotter at whatever scale the project needs, limited only by paper size.
What Feeds the Same Pipeline Besides a Total Station
Modern computerized survey systems rarely rely on just one data source. GPS observations, digitized paper maps, and even stereo analysis of aerial photographs can all feed into the same coordinate database alongside total station shots, giving planners, engineers, and GIS analysts one unified dataset to design against.
Common Questions
Coordinate geometry software calculates the closure error, and if it falls within acceptable tolerance, adjusts all points proportionally. If it doesn't close, that's usually a sign of a field error that needs re-checking.
Each manufacturer historically built its own output format. Sokkia and Leica formats, for example, structure the same underlying data (point ID, angles, distance, coordinates) quite differently, which is why format conversion is still a real part of office processing.
Less than before. Many modern total stations store data on memory cards read directly by a computer, skipping the cable and dedicated data collector altogether.
This entire pipeline is what makes a modern Construction Project survey deliver a usable drawing within hours instead of days, and it's the backbone that feeds every GIS Dashboard built from field-collected coordinates.
| Stage | What Happens |
|---|---|
| Data gathering | Raw angles and distances captured and stored by the instrument |
| Data processing | Coordinates calculated, traverse closures checked and adjusted |
| Data plotting | Final map or plan generated at the required scale |
"The instrument measures. The pipeline decides what that measurement means on paper."
Next time a finished survey drawing lands in an inbox faster than expected, that speed came from a pipeline running quietly behind the scenes, converting raw angle and distance readings into coordinates, then into a plotted map, without a single manual transcription step slowing it down.
