How a Total Station Knows Which Way Is North

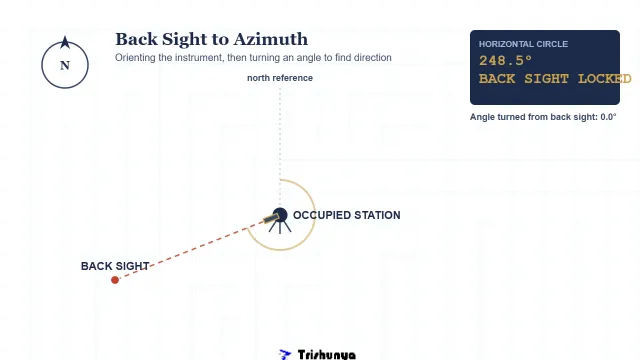

A total station has no built-in sense of direction. Left alone, it doesn't know which way is north, east, or anything else. Every angle it reports is relative to wherever you point it first. That first reference direction is called a back sight, and getting it right is what turns a pile of angle readings into a coordinate system anyone else can trust.
Think of it like starting a story mid-sentence. The instrument can tell you exactly how far it turned from where it started, but unless you tell it where "start" actually points on a map, none of that turning means anything to anyone outside the immediate setup.
Try It: Read a Bearing
Drag the slider to rotate the compass needle and read the azimuth, the same clockwise-from-north measurement a total station records the moment it locks onto a back sight.
Bearing Reader
This is exactly the number a total station displays and stores as its reference azimuth to the back sight.
Two Ways to Set the Direction
Back Sight
A known reference point with a prism set up on it. The surveyor measures both angle and distance to it, useful because it also lets the instrument check itself later by re-measuring the same point.
Azimuth Mark
A distant, sharp, distinct object used purely for direction, no prism needed. Faster to set up, but it cannot double-check distance accuracy the way a back sight can.
Where the True Bearing Comes From
A compass gives a rough azimuth, but it reads magnetic north, not true north, and the two differ by the local magnetic declination. For real project accuracy, most crews now use GPS: measuring station and back sight coordinates directly in a coordinate system lets the total station calculate its own true azimuth automatically, no compass or manual correction needed.
Common Questions
To check nothing shifted. If the tripod, tribrach, or back sight prism moved even slightly during the session, comparing the opening and closing readings catches it before bad data gets used.
The angle between magnetic north (where a compass points) and true north (the geographic pole). It varies by location and must be corrected for when using a compass to set an azimuth.
Yes, for many total stations, especially when only direction matters and distance-based error checking isn't required. Many crews still set up both as a safety check against each other.
| Term | Measured | Needs a Prism? |
|---|---|---|
| Back sight | Angle + distance | Yes |
| Azimuth mark | Angle only | No |
| GPS baseline | Coordinates directly | No |
"An angle without a reference direction is just a number. A back sight is what turns that number into a real bearing."
This orientation step is the quiet backbone of accurate Construction Project layout work, since every stakeout point later depends on the direction locked in during this very first sighting. It connects directly to the elevation side of the same setup, covered in our Site Leveling reference.
Next time a survey crew carefully sets up a second tripod some distance away before taking a single real measurement, that's the back sight going in. It looks like an extra step, but it's the one thing standing between coordinates that mean something and coordinates that are simply wrong in a very precise way.
