Inside the Automatic Level: How Gravity Does the Leveling
Set up an old-style dumpy level even slightly off, and every single reading through it is wrong until you fix it. Set up a modern automatic level roughly, just get the bubble somewhere near centered, and it quietly corrects itself. That difference is not luck. It is a small gravity-driven mechanism doing constant, silent work inside the telescope.
This mechanism is called a compensator, and it is the entire reason automatic levels became the default choice for site leveling, benchmark work, and construction grading almost everywhere.
What's Actually Swinging In There

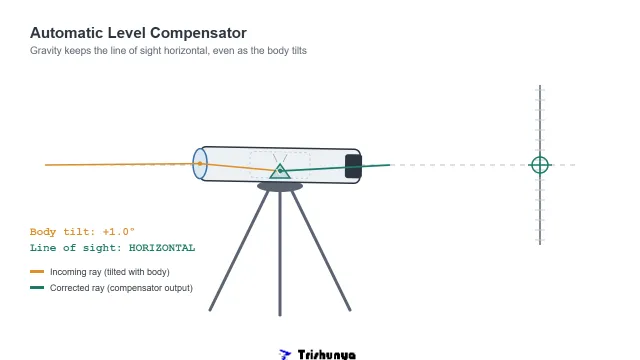

Inside the telescope, a small prism or mirror hangs freely, sometimes suspended on fine wires, referenced entirely by gravity. When you level the instrument roughly using the circular spirit level, the compensator takes over from there. Even if the telescope body is tilted by a small residual amount, the suspended optics swing to compensate, redirecting the light path so the line of sight stays truly horizontal.
This is why setup is so fast: you are no longer chasing perfect level by hand, you are just getting close enough for gravity to finish the job. On a busy construction site levelling survey, that time saved across dozens of setups adds up fast.
Try It: Watch the Compensator Correct a Tilt
⚙️ Compensator Swing Simulator
Drag the slider to tilt the instrument body. Watch the suspended prism swing to keep the outgoing line of sight level, exactly what happens inside a real automatic level.
Line of Sight
Status
The Damping System: Stopping the Swing
A freely hanging prism has one obvious problem, it does not just settle, it swings, and swinging optics would make every reading blurry and unstable. Automatic levels solve this with a magnetic damping system: a small magnet and conductor arrangement that generates eddy currents whenever the compensator moves. Those eddy currents create a force that opposes the motion, so the swing settles quickly instead of oscillating for several seconds.
It is worth remembering that this convenience comes with one real caution: the compensator hangs on fine wires or delicate pivots. If that wire or fulcrum breaks, the instrument does not necessarily show an obvious fault, it can simply become inoperative while still handing you numbers, and every subsequent reading will be quietly wrong.
Tap the telescope gently, watch the cross hair kick and return. If it does not return, do not trust another reading from that instrument until it is checked.
That tap test, briefly nudging the telescope or slightly turning a leveling screw, is the standard field check. A healthy compensator will show the cross hair deflect momentarily then settle back to the same reading. No deflection at all, or a reading that does not return, means the compensator needs servicing before it goes anywhere near a benchmark or precise leveling task.
Three-Screw vs Four-Screw Bases
Most modern automatic levels use a three-screw leveling base, supported entirely by the foot screws themselves. Older four-screw bases are supported by a center bearing instead. This distinction actually matters mid-survey: adjusting the foot screws on a three-screw instrument changes the height of the line of sight, while adjusting a four-screw instrument's screws does not, because the center bearing carries the load. On precise benchmark work, that difference can introduce a real error if a surveyor re-levels mid-setup without accounting for it.
Quick Check: Test Yourself
🎯 What keeps the line of sight horizontal in an automatic level?
Frequently Asked Questions
A compensator is a gravity-referenced prism or mirror suspended inside the telescope that automatically keeps the line of sight horizontal, even if the instrument body is slightly tilted after rough leveling.
Without damping, the freely suspended compensator would keep swinging after any disturbance, making readings unstable. The magnetic damping system uses eddy currents to slow and settle the swing quickly.
Gently tap the telescope or slightly turn a leveling screw while observing the cross hair on a rod. It should deflect momentarily and then return to its original reading. If it does not return, the compensator may be faulty.
A three-screw base is supported entirely by its foot screws, so adjusting them changes the line of sight height. A four-screw base is supported by a center bearing, so its foot screw adjustments do not affect the line of sight height.
Yes. If the wire or fulcrum holding the compensator breaks, the instrument can still display readings, but they will be systematically incorrect, which is exactly why the tap test should be part of routine field checks.
