What is a Watershed Delineation and How Survey Data Defines Drainage Basins
Every drop of rain that falls on land eventually flows somewhere, following gravity down to a stream, river, or reservoir. A watershed is the entire area of land where all that rainfall drains to the same outlet point. Delineating this boundary precisely is essential for flood management, drainage design, and reservoir catchment analysis.
100%
Automated from accurate DEM data
1 outlet
Point defining each individual watershed
0.5m
Recommended DEM resolution for accurate delineation
Zero
Manual boundary tracing needed with good DEM

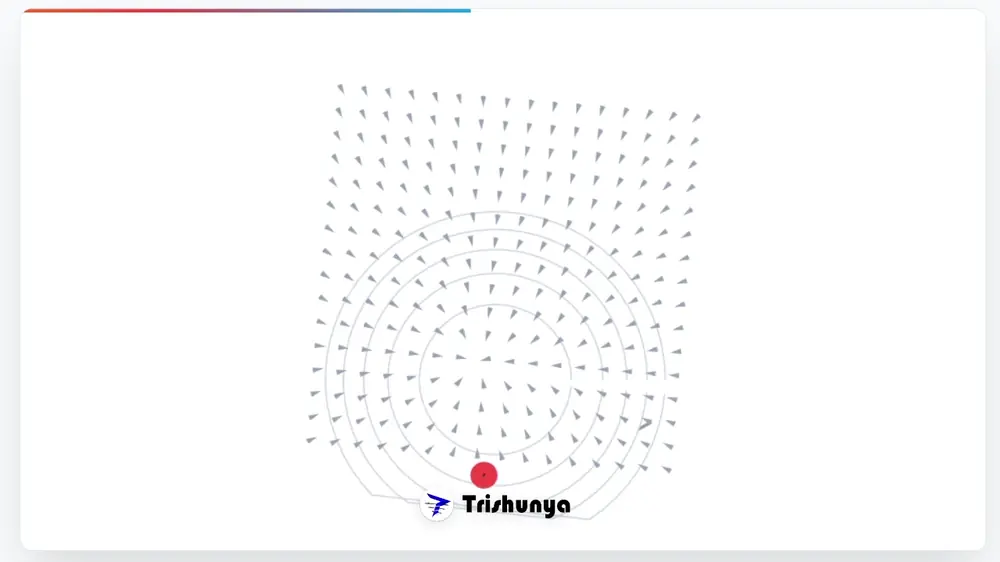

How Software Calculates a Watershed Boundary
1
DEM Input
2
Flow Direction
3
Flow Accumulation
4
Watershed Tracing
Why DEM Quality Directly Determines Accuracy
Errors in elevation data create errors in watershed boundaries
Since watershed calculation depends entirely on precise flow direction at every point, low-resolution or noisy DEM data can produce incorrect boundaries, especially in flat terrain where small elevation errors dramatically change apparent flow direction.
Applications of Watershed Delineation
Reservoir Catchment Analysis
Understanding exactly how much land area contributes water to a dam or reservoir informs capacity and flood risk planning.
Urban Drainage Design
Identifying natural drainage patterns before designing stormwater infrastructure prevents conflicts with existing flow paths.
Flood Risk Assessment
Combined with rainfall data, watershed area feeds directly into flood volume and peak flow calculations.
Environmental Impact Studies
Understanding drainage basin boundaries is essential for assessing pollution transport and ecological connectivity.
A precisely delineated watershed boundary around a reservoir informs capacity planning and flood risk assessment for the entire catchment.
Accurate DEM data from our drone survey services provides the foundation for reliable watershed delineation and downstream hydrological analysis.
