What is Setting Out (Stakeout) and How Design Drawings Become Physical Markers
A design drawing exists only on paper or a screen until someone translates it onto the actual ground where construction will happen. Setting out, also called stakeout, is that translation process, converting design coordinates into physical markers that a construction crew can build from with confidence.

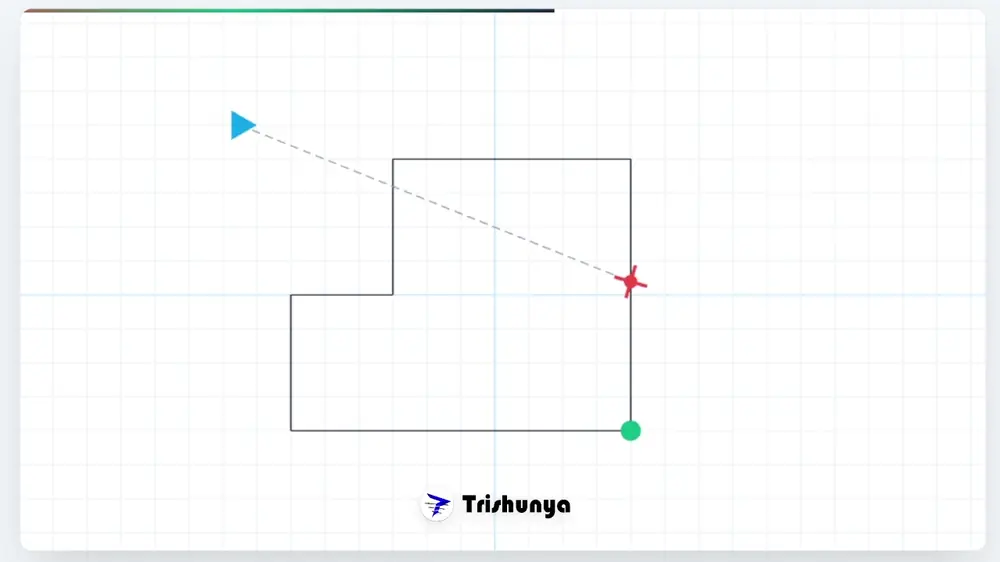

How Stakeout Actually Works
DGPS controller.">
1
Load Design Data
2
Instrument Setup
3
Point Navigation
4
Physical Marking
1cm
Typical stakeout precision, Total Station
50+ pts
Points staked per day, typical crew
Zero
Ambiguity when done correctly
What Gets Set Out on a Typical Project

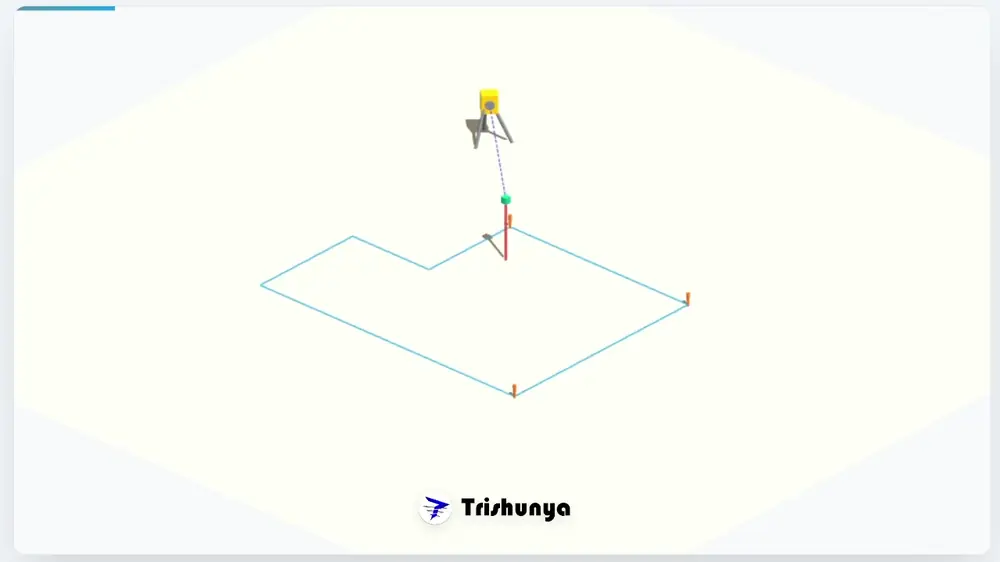

A physical marker at a confirmed stakeout point, ready for the construction crew to build from.
Building corners
Column centers
Foundation edges
Road alignment
Tower foundation points
Utility trench lines
Why Precision Here Prevents Expensive Rework
An error at stakeout compounds into every layer above it
If a foundation corner is marked even a few centimetres off, everything built on top, walls, columns, structural connections, inherits that error. This is why stakeout tolerance standards are strict and why independent verification checks are standard practice on serious projects.
Every stakeout project we execute includes independent verification before construction proceeds, ensuring the physical markers genuinely match the design intent. See our stakeout services.
