What is a Pipeline Right of Way Survey and What It Documents

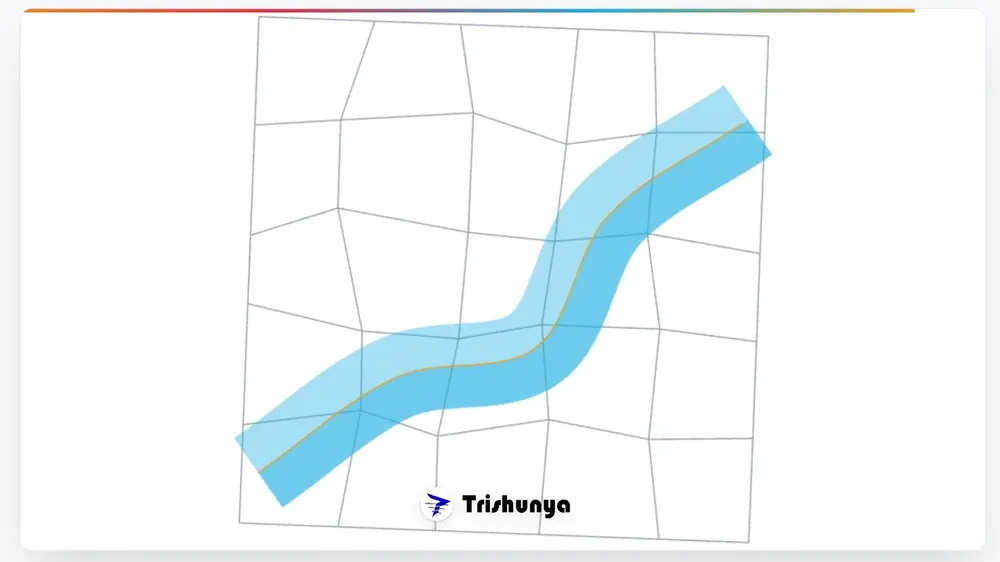

A pipeline crosses land it does not own, through a legally defined corridor called the Right of Way. Surveying this corridor accurately is essential for legal land documentation, safety clearances, and construction planning, all before a single length of pipe goes into the ground.
15-30m
Typical pipeline ROW corridor width
20 km/day
Corridor survey coverage rate
5cm
Terrain accuracy for pipeline grade design
100%
Crossings requiring documentation
What a ROW Survey Must Capture
Terrain and Elevation
Full corridor topography for pipeline gradient design, ensuring proper flow characteristics and constructability.
Existing Crossings
Roads, railways, rivers, and other utility lines crossing the proposed route, each requiring specific clearance documentation.
Land Parcel Boundaries
Every property the corridor passes through, needed for legal easement or acquisition documentation.
Subsurface Conditions
GPR detection of existing buried utilities that might conflict with the proposed pipeline route.
The Survey Process
1
Route Reconnaissance
DGPS survey captures precise terrain data for engineering design of grade and burial depth.">
2
Topographic Detail
3
Crossing Verification
4
Land Documentation
GPR scanning at every crossing point confirms what already exists underground before the new pipeline route is finalized.
Deliverables for Pipeline Projects
| Deliverable | Purpose |
|---|---|
| Corridor Topography Drawing | Pipeline gradient and profile design |
| Crossing Schedule | Documentation of every existing crossing with clearance data |
| Land Acquisition Drawing | Affected parcel documentation for legal easement process |
| GPR Utility Report | Confirmed subsurface conditions at critical crossings |
Pipeline projects combine multiple survey methods into one coordinated deliverable package. Learn more about our linear project survey services for pipeline, road, and railway corridors.
