What Is EDM? How Surveyors Measure Distance With Light
Stretch a measuring tape across a football field and you will get tired, argue about sag, and still be off by a few centimetres. Now imagine measuring 3 kilometres, across a valley, in under 4 seconds, accurate to a few millimetres. That is not a tape trick. That is Electronic Distance Measurement, or EDM, the technology quietly sitting inside every total station used on construction sites, road alignments, and land surveys today.

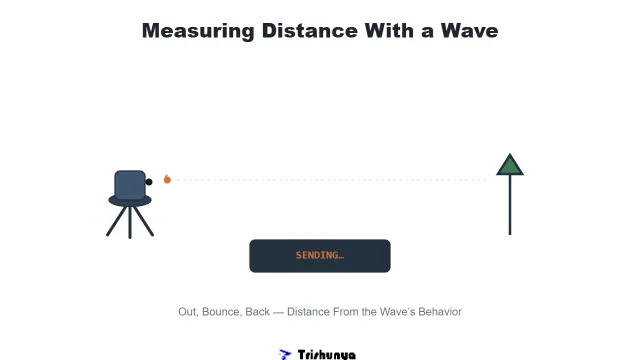

EDM does not touch the ground it is measuring. It sends out a beam, an infrared light, a laser, or sometimes a microwave, waits for it to bounce back from a target, and works out the distance from how the wave behaved on its round trip. No tape, no chain, no physical contact with the terrain at all.
The Trick Is in the Wave, Not the Speed
Light is fast, roughly 299,792 kilometres per second. Too fast to time directly with any everyday clock. So EDM does not try to time the beam like a stopwatch. Instead it modulates the light, meaning it makes the wave oscillate in a very regular, known pattern, and sends it toward a reflector prism positioned at the point being measured.
The wave travels out, bounces off the prism, and comes back. Because the instrument knows exactly what the wave looked like when it left, it can compare that to what comes back and measure the phase shift, essentially, how much the wave pattern has slipped out of sync during its round trip. That slip tells the instrument how many whole wavelengths plus one leftover fraction of a wavelength the beam travelled. Multiply that by the known wavelength, and you get distance.
Try It: Drag the Wave and Watch the Shift
⚡ Phase Shift Lab
Drag the slider to change how far the "target" is. Watch the returning wave (dashed) slide out of step with the outgoing wave (solid). That gap is the phase shift EDM actually measures.
What Bends the Beam: The Atmosphere
Here is something most people never think about: light does not travel at a constant speed once it enters air. Temperature, atmospheric pressure, and water vapour all change how fast the wave moves compared to vacuum. For short shots this barely matters. Over a kilometre or more, it is the difference between a survey that holds up in court and one that gets challenged.
That is why every serious EDM instrument, and every properly run DGPS and total station survey, logs temperature and pressure at the time of measurement and applies a correction. Skip that step on a long baseline and your "precise" instrument quietly hands you an imprecise number.
An EDM instrument is only as honest as the atmosphere correction fed into it. The electronics never lie, the uncorrected air does.
Quick Check: Test Yourself
🎯 What does EDM actually measure to calculate distance?
From Standalone Boxes to Total Stations
EDM was first introduced in the 1950s as a bulky, expensive standalone unit mounted on top of a theodolite. It worked, but it was heavy and slow. Today the same principle lives inside a compact modular unit built directly into a total station, paired with electronic angle measurement so a single setup gives you distance, horizontal angle, and vertical angle in one shot. That combination is what makes modern construction layout and control surveys fast enough to keep up with site progress instead of lagging behind it.
Frequently Asked Questions
EDM stands for Electronic Distance Measurement, an instrument or module that calculates distance using modulated electromagnetic waves, typically infrared light or laser, instead of physical tape measurement.
Not exactly. EDM is the distance-measuring component. A total station combines EDM with an electronic theodolite so it can measure angles and distances together from one setup.
Temperature, along with pressure and humidity, changes the refractive index of air, which changes how fast the measuring wave actually travels. Uncorrected, this introduces small but real distance errors, especially over longer lines.
No. Most instruments can measure with a prism reflector for long range and high accuracy, but many modern units also support reflectorless measurement over shorter ranges using the target surface itself.
Typical accuracy is expressed as a fixed error plus a distance-proportional error, commonly written as something like ±(3-10 mm + 1-10 ppm), meaning the error grows slightly as distance increases.
