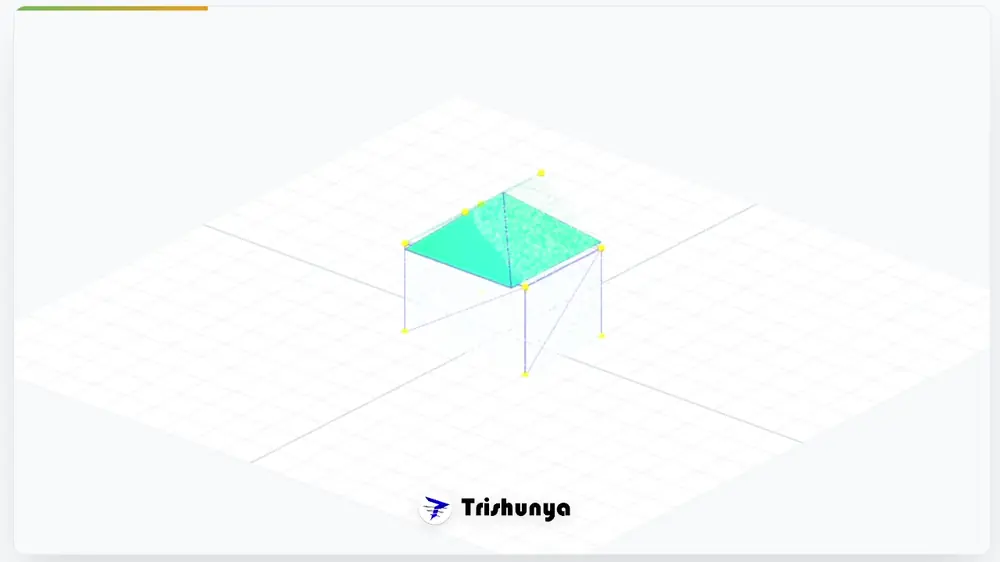

What is Dense Image Matching and How Software Builds 3D Models From Photos
After Structure from Motion establishes camera positions and a sparse set of matched feature points, the resulting model is still far too rough for a usable survey deliverable. Dense image matching is the next processing stage, filling in millions of additional 3D points between the sparse features to produce a genuinely detailed model.
1,000+
Dense point density achievable per m²
100x
More points than sparse SfM stage alone
10-30 min
Processing time per km² typical
Zero
Manual intervention needed, fully automated
How Dense Matching Fills the Gaps
1
Known Camera Geometry
2
Pixel-Level Matching
3
Dense Triangulation
4
Mesh and Texture
Factors That Affect Dense Matching Quality
Image Resolution
Higher resolution source images allow finer pixel-level matching, directly improving final point density and detail.
Lighting Consistency
Even, diffuse lighting across the survey session avoids harsh shadows that confuse pixel matching between images.
Overlap Percentage
Sufficient overlap ensures every surface point appears in multiple images, giving the matching algorithm redundant confirmation.
Surface Texture
Textured surfaces match more reliably than smooth, uniform surfaces which provide fewer distinguishable pixel patterns.
The final textured mesh output looks remarkably realistic, built entirely from dense pixel-level matching across hundreds of overlapping photos.
Practical Implications for Survey Planning
Dense matching quality is determined before processing even begins
No amount of processing power can create detail that the source photos never captured. Flight altitude, overlap, lighting conditions, and camera quality at the time of capture set the ceiling for what dense matching can ultimately achieve.
Every survey we execute is planned with dense matching quality in mind from the start, ensuring the final 3D model meets the detail level your project actually requires. Learn more about our drone survey services.
