The Instrument That Replaced a Century of Guesswork
Before the 1980s, mapping a plot of land meant a surveyor hunched over a plane table, drawing directly onto paper at a fixed scale. Get the scale wrong, or need a bigger area later, and there was no fixing it. You started over. The total station ended that problem in one stroke, by turning survey measurement into pure digital data instead of ink on paper.
A total station is, at its core, a digital theodolite fused with an electronic distance meter (EDM) and a small onboard computer. It measures two angles and one distance from where it stands to any point you aim at, then calculates that point's exact coordinates automatically. No manual trigonometry, no transcription errors, no guesswork.
What's Actually Inside It

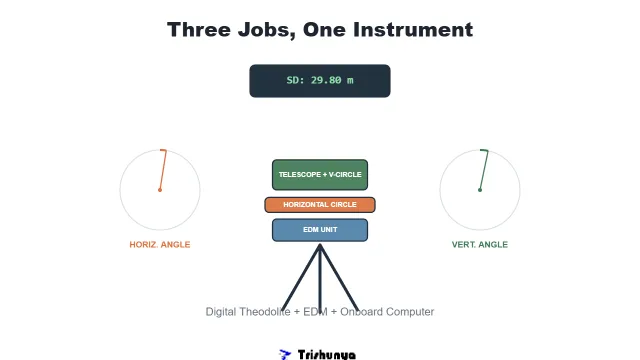

Strip away the branding and every total station does the same three jobs: measure a horizontal angle, measure a vertical angle, and measure a slope distance to a target. A built-in processor then converts those three raw numbers into easting, northing, and elevation, the coordinates that go straight into your survey drawing.
TAP A PART TO LEARN IT
Old Method vs New Method
PLANE TABLE ERA
Fixed scale drawn directly on paper in the field. Low precision, no way to rescale later, and the map quality could never improve after the fact.
TOTAL STATION ERA
Raw digital coordinates downloaded straight to a computer. Rescale, replot, and reprocess the same dataset endlessly, without touching the field data again.
Why Crew Size Shrank
Digital readouts eliminated the reading errors that came from squinting at an optical theodolite scale, and electronic data collectors removed the transcription errors of copying numbers into a field book by hand. Between the two, most land survey crews dropped from three people to two, sometimes with a third added back only when speed matters more than crew cost.
Common Questions
Not quite. A theodolite only measures angles. A total station adds an EDM for distance measurement and a processor to calculate coordinates, all in one housing.
Electronic Distance Meter. It sends a signal, usually infrared or laser, to a prism and calculates distance from the time or phase shift of the return signal.
Because the light path between the instrument and the true center of the prism is not identical to the measured path. Get the prism constant wrong, and every single distance reading carries the same fixed error, often larger than any other error source combined.
| Component | Function |
|---|---|
| Theodolite unit | Measures horizontal (Hz) and vertical (V) angles |
| EDM | Measures slope distance to the prism |
| CPU | Calculates E, N, H coordinates from raw readings |
| Data collector | Stores readings and transfers them to a computer |
"A total station doesn't measure a point. It measures three numbers, and calculates the point for you."
Understanding these fundamentals matters even before a project starts, whether the work is a Construction Project layout or a full Stakeout for a road alignment. The instrument is only as reliable as the setup behind it, which is exactly what the next post in this series covers: levelling and centering, done correctly, every single time.
Next time you see a small tripod-mounted instrument on a construction site with someone peering through it, remember what's happening underneath: two angles, one distance, converted instantly into coordinates that used to take a surveyor half a day of manual trigonometry to work out by hand.
