Total Station Stakeout: How Millimetre Accuracy Actually Happens

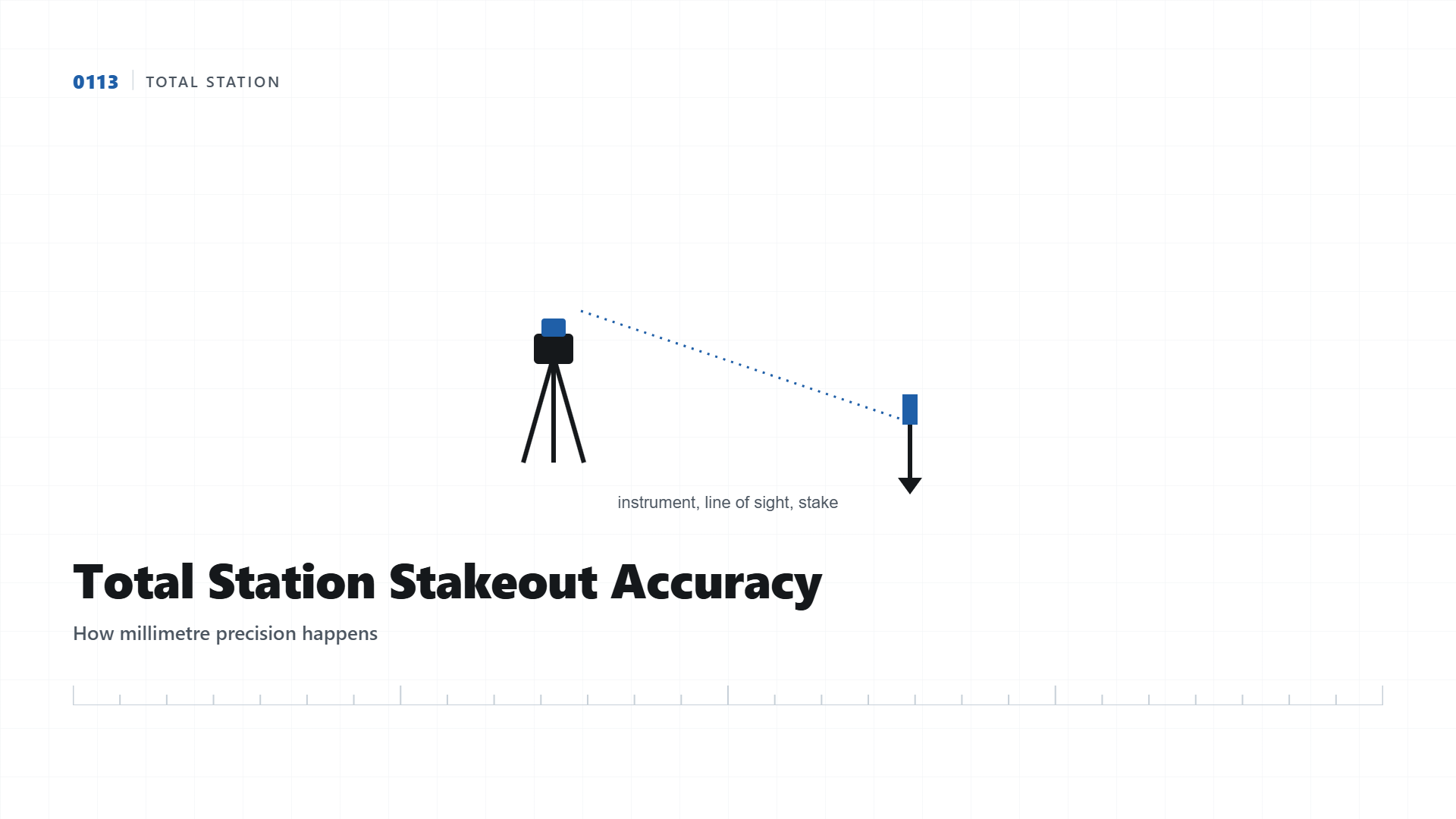

Here is how Total Station stakeout works: the instrument measures angle and distance to a reflective prism with extreme precision, then the field software calculates exactly where that prism needs to move to match a design coordinate. What most people do not realize is that the instrument's precision means nothing if the setup underneath it is wrong. The accuracy chain has weak links, and they are all before the first shot is even taken.

Step 1: The Instrument Precision You're Paying For

A modern Total Station measures horizontal and vertical angles to within 1 to 2 arc-seconds, and distance to within 1-2mm plus a small proportional error over range. Over a typical 100m shot, this translates to a positional accuracy in the low single-digit millimetres, more than sufficient for column grid layout, structural alignment, or precision machinery installation.

Total Station set up over a known control point before stakeout begins.

Step 2: Where Accuracy Actually Gets Lost

The Setup Sequence That Actually Determines Accuracy

The backsight check is the step most often rushed, and it is the single most important quality control in the entire process. Before staking out a single design point, the instrument sights a second known control point and confirms the measured coordinate matches what it should be. If it does not match within an acceptable tolerance, something in the setup is wrong, and every stakeout point afterward would inherit that same error.

Where Total Station Beats GNSS Methods

Prism pole held plumb during column grid stakeout, a step where small handling errors compound quickly.

Total Station stakeout is precise by design, but that precision is only as good as the control network and setup discipline behind it. If your project needs stakeout or structural alignment verification, the accuracy you get depends entirely on whether these fundamentals were respected in the field, not just which instrument was used.
