The Prism Trick: Why That Little Glass Cube Matters
Look closely at a survey prism and it seems almost too simple: a glass cube, corners cut off, mounted on a pole or tripod. Yet that little jewel-like piece of glass carries its own built-in measurement error, one that engineers have to account for on every single reading, or the whole distance comes out slightly wrong.

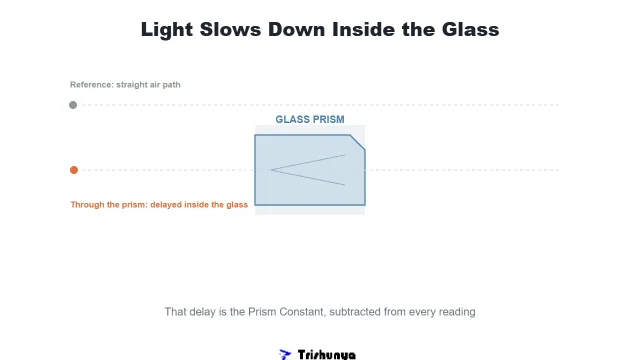

Here is why: light travels slower through glass than through air. So when an EDM beam enters a prism, bounces off its internal corner, and exits again, it takes a little longer than it would have taken to travel the same physical distance through open air. That extra delay has a name, the prism constant, and every accurate survey has to subtract it out.
Meet the Prism Family
Not every prism looks or mounts the same way, and the right choice depends on the job. Cube corner prisms are prized because of a neat trick, they reflect light straight back toward wherever it came from, even if the prism itself is not perfectly aimed at the instrument.
Single Prism
High precision target, often tribrach-mounted for control survey work requiring the tightest accuracy.
Mini Prism
Compact and lightweight, ideal for tight spaces or handheld pole work where bulk gets in the way.
Tribrach-Mounted
Centered by optical plummet, allows forced centering, swap instrument and prism without re-setup.
Pole-Mounted
Portable, quick to move, well suited for stakeout and topographic point collection across a site.
Zero Correction: Erasing the Hidden Offset
The prism constant is only half the story. The EDM instrument itself has its own internal offset too, the gap between its electrical measuring center and the physical mounting point on the tripod. Manufacturers correct this at the factory through a process called zero correction, but it is instrument-specific. Mix an uncalibrated prism with an unfamiliar instrument, and both small offsets stack into a real error.
This is exactly why control survey crews field-check the constant before trusting a new instrument-prism pairing, especially before a critical urban infrastructure or land boundary survey. Lay out a long line, measure the whole thing plus two halves, and any consistent leftover gap reveals the hidden constant.
Try It: Tilt the Prism and Watch the Error Grow
💠 Incidence Angle Simulator
Drag the slider to tilt the prism face away from the instrument. Watch how quickly the reflected signal weakens and the distance error creeps up.
Approx. Error
Signal Strength
Angle vs Error, In Real Numbers
| Incidence Angle | Distance Error |
|---|---|
| 0° | 0 mm |
| 10° | 0.6 mm |
| 20° | 2.5 mm |
| 30° | 5.7 mm |
| 40° | 10.3 mm |
A prism does not need to face the instrument exactly, cube corners forgive small misalignment. It just cannot be forgiven forever.
This is precisely why field crews are trained to keep prisms genuinely upright, not just roughly pointed, whenever a site leveling or control network survey demands millimetre-level trust. A tilted prism will still return a number. It just will not be the right one.
Frequently Asked Questions
The prism constant is the small correction value that accounts for the extra time light takes travelling through the prism's glass compared to travelling the same physical distance through open air.
Zero correction accounts for the offset between the EDM instrument's electrical measuring center and its physical mounting point, a separate hardware-specific value from the prism's own internal delay.
Physically often yes, but for the highest accuracy the prism constant should match what the instrument expects, or be manually entered into the instrument so it applies the correct offset.
As the incidence angle increases, the prism reflects the beam less precisely back to its source, weakening the returned signal and introducing a small but measurable distance error.
Not inherently. Accuracy depends more on flatness, mounting stability, and correct constant configuration than on physical size, though full-size tribrach-mounted prisms are typically preferred for the highest precision control work.
