No Prism, No Problem: How Reflectorless EDM Works

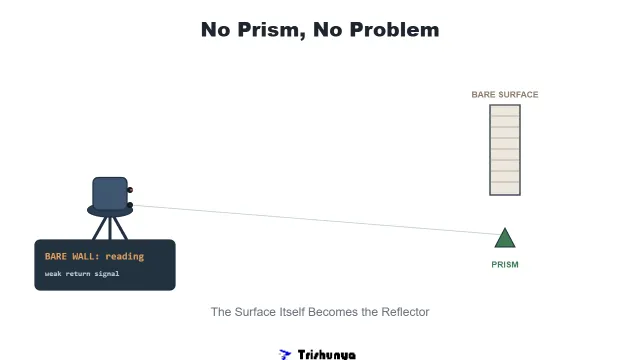

Point a modern EDM at a bridge pier, a cooling tower, or a cliff face, and it will hand you a distance in under a second, without a single prism anywhere near the target. No pole, no tribrach, no person standing in a dangerous spot holding a reflector. The surface itself becomes the reflector.
This is reflectorless EDM, and it works by aiming a laser diode straight at whatever needs measuring. A small amount of that light naturally bounces back off the surface, enough for the instrument to still calculate a phase shift and return a distance, no cooperative reflector required.
Two Lasers, One Instrument
Many reflectorless total stations actually run two separate laser channels side by side. One infrared beam, tuned for long range, works with a standard prism up to several kilometres. A second, visible red laser handles reflectorless shots at shorter range, useful precisely because the surveyor can literally see the dot land on the target and confirm the correct surface is being measured, not a branch or vehicle passing in front of it.
This dual-laser approach is what makes reflectorless measurement practical for near-shore hydrographic work and heavy construction inspection, moving targets, hard-to-access structural faces, and situations where sending a person to hold a prism is simply not safe.
Where It Actually Gets Used
Bridge components, dam faces, cooling towers, mining cross-sections, cluttered construction sites, anywhere access is dangerous or a prism just cannot be physically placed. Reflectorless capability turns what used to require rope access or a second crew member into a single operator with a clear line of sight.
The Geometry Behind Every Shot: A Field View
Whether or not a prism is involved, every EDM shot still reduces to the same basic triangle: a slope distance, a vertical angle, and the resulting horizontal distance and elevation difference. Picture a generic hillside survey below, an EDM station on one side of a valley, a target point across it.
The instrument measures the slope distance S directly and the vertical angle from its own accompanying theodolite. From those two numbers alone, basic trigonometry gives the horizontal distance (S cos ฮธ) and the vertical difference (S sin ฮธ), which is then combined with instrument height and target height to find the elevation of point B relative to point A. This is the same math behind every DEM and elevation dataset built from field survey points, whether the target was a prism or a bare rock face lit by a reflectorless laser.
Reflectorless Range vs Prism Range
| Mode | Typical Range | Typical Accuracy |
|---|---|---|
| With Prism | Up to several km | ยฑ(3 mm + 1 ppm) top-end |
| Reflectorless | 80-350 m (up to 80 m on visible red laser) | ยฑ(6-10 mm) |
Reflectorless EDM does not replace the prism, it removes the requirement for one exactly where placing a prism was never realistic to begin with.
Frequently Asked Questions
It aims a laser diode directly at the target surface. Even without a prism, a small portion of the light naturally reflects back, enough for the instrument to detect the phase shift and calculate distance.
A prism is designed to reflect almost all incoming light directly back to the source, while a natural surface reflects only a small fraction, limiting how far the instrument can reliably detect a usable return signal.
Light-coloured, flat surfaces facing perpendicular to the measuring beam typically give the most accurate and reliable reflectorless readings.
Yes, because reflectorless readings can be taken in under a second, some applications like near-shore hydrographic surveying use it for tracking targets that are in motion.
No, the underlying trigonometry stays the same. The measured slope distance and vertical angle are used to calculate horizontal distance and elevation difference regardless of whether a prism or a natural surface reflected the beam.
