Mapping a Site Point by Point: Radial Shooting vs Traverse
Stand a total station at one spot and you can only see part of a site. Trees, buildings, or a change in terrain will always block something. The two survey methods every crew relies on to solve this, radial shooting and traverse, are really answers to the same question: how do you capture an entire site when you can't see all of it from one place?
Radial shooting handles what you can see from where you're standing. Traverse handles moving to a new vantage point without losing track of where everything already measured actually sits, relative to the new position.
Try It: Build a Radial Shot Pattern
Below is a simplified site map. Click "Add Shot" to fire radial measurements outward from a single station, the way a surveyor captures everything visible from one setup before moving on.
📡 Radial Shot Simulator
Gold dot: instrument station. Each click fires a new radial measurement outward, exactly how one setup captures every visible feature around it.

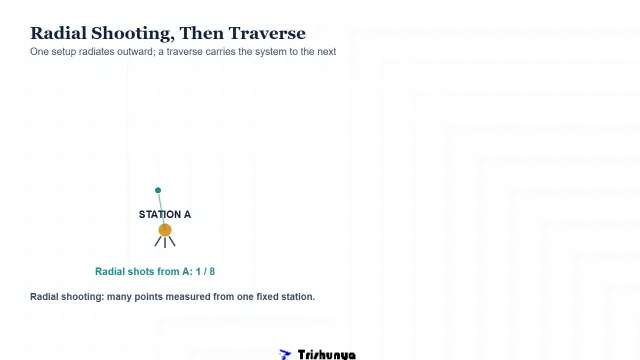

Radial Shooting: One Station, Many Points
From a single setup, you measure as many visible objects as possible, each one recorded as its own coordinate with a point ID. Points on a continuous feature, like a curb line or a shoreline, get measured close together for a smooth, accurate shape once plotted. A 4 to 5 metre spacing usually works well for general terrain, tighter where detail matters more.
Traverse: Moving Without Losing the Thread
When one setup can't see the whole site, the crew moves to a new station, but the new position needs its coordinates and orientation tied back to the same system as the first. A traverse does exactly this: measure the new station's position from the old one, set up there, back sight to the previous station, and continue. Every new station inherits its coordinate system from the one before it, like a chain.
📍 Radial Shooting
Best for capturing dense detail visible from one spot. Fast, simple, but limited by line of sight from a single station.
🔗 Traverse
Best for large or obstructed sites needing multiple setups. Slower to establish, but keeps every station's coordinates in one connected system.
Most real projects use both together: traverse between control points to establish the framework, then radial shooting from each station to fill in the detail. This is standard practice on our Linear Project (Pipeline, Road, Railway) surveys, where the corridor is too long for a single setup to ever cover, and it's the same principle behind most Topography mapping work.
| Method | Used When | Key Requirement |
|---|---|---|
| Radial shooting | All points visible from one station | Clear line of sight |
| Traverse | Site too large or obstructed for one setup | Shared point between each station pair |
"A traverse is just a chain of trust: each new station believes the coordinates of the one before it, and passes that trust forward."
Next time you see survey stakes marching across a long site in a visible line, that's likely a traverse in progress, each stake a station where the crew stopped, oriented off the last point, and kept the whole chain of measurements connected. Simple in concept, and the reason a 2-kilometre road alignment can be surveyed with the same accuracy as a single small plot.
