How Wind Farm Site Assessment Depends on Survey Data
Wind turbine placement is not a simple matter of finding open land. Terrain elevation affects wind flow patterns, access roads must be engineered for enormous transport vehicles, and foundation design depends on precise ground conditions. Survey data underpins every stage of this planning process.
200m+
Modern turbine hub height
5cm
Foundation stakeout accuracy required
15%
Access road grade limit for turbine transport
100+ km²
Typical large wind farm survey area

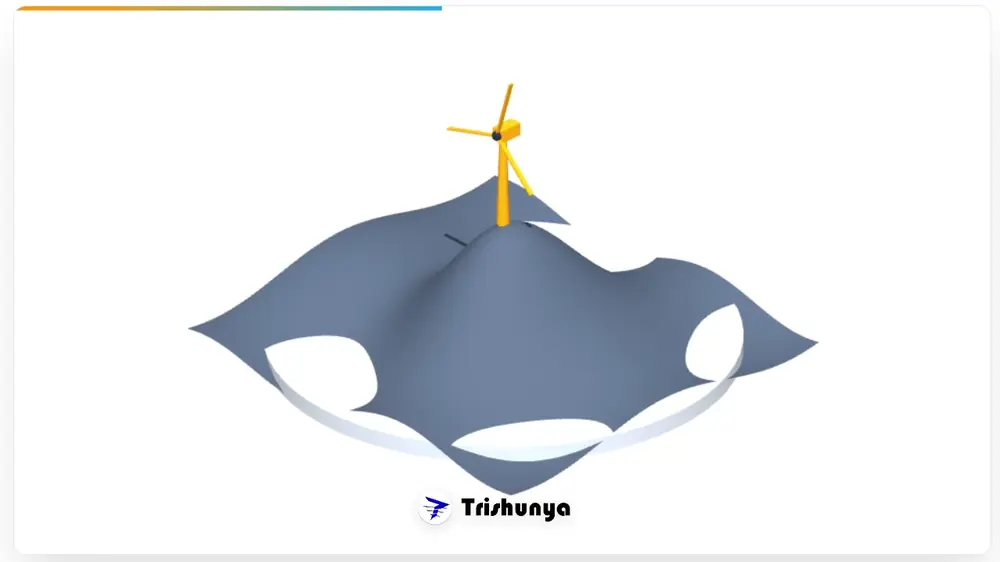

Terrain and Wind Flow Relationship
Terrain shape directly influences wind resource
Ridgelines, valleys, and elevation changes affect how wind accelerates or decelerates across a site. Precise DEM data feeds directly into wind flow modelling software, helping engineers identify optimal turbine positions for maximum energy capture.
Survey Data Requirements at Each Stage
1
Site Topography
2
Access Road Survey
3
Foundation Stakeout
4
As-Built Verification
Access Road Engineering Challenges
Turbine Blade Transport
Blade sections often exceed 50 metres in length, requiring wide turning radii and careful grade management along access roads.
Heavy Crane Access
Assembly cranes weigh hundreds of tonnes, demanding reinforced, precisely graded access paths to each turbine position.

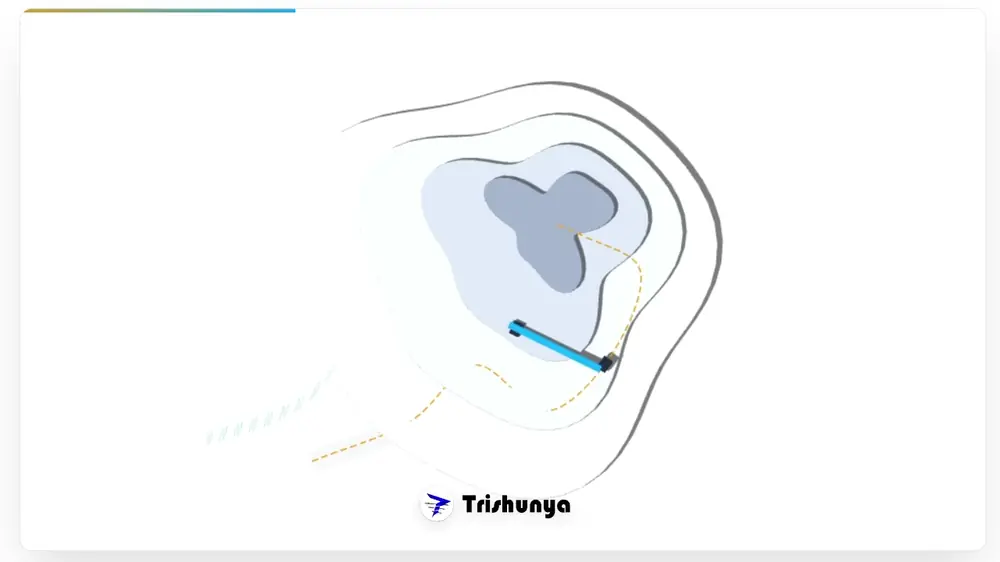

Access road grading for wind farm construction depends on precise survey data to accommodate oversized transport vehicles.
Why Accuracy Matters at This Scale
| Survey Component | Consequence of Poor Accuracy |
|---|---|
| Terrain DEM for wind modelling | Suboptimal turbine placement, reduced energy yield |
| Access road grade survey | Transport vehicle access failure, construction delays |
| Foundation stakeout | Structural alignment issues affecting turbine performance |
Wind energy projects across India increasingly rely on drone-based survey to cover large candidate sites efficiently before committing to detailed engineering. Learn more about our drone survey services for renewable energy projects.
