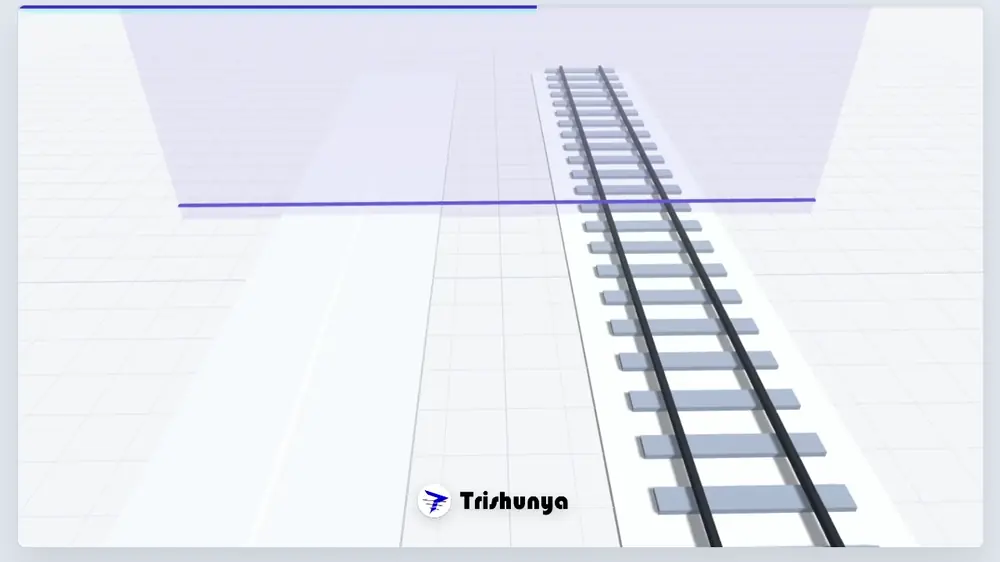

How Railway Corridor Surveys Differ From Highway Surveys
At first glance, a railway survey and a highway survey look similar: both are linear corridor surveys covering topography, alignment, and levels along a defined path. But railway engineering tolerances are considerably tighter, and the deliverables reflect requirements that highway design simply does not have.
- Track gauge measurement to millimeter tolerance
- Rail top level accuracy critical for ride quality and safety
- Curve and gradient data referenced to Indian Railways standards
- Platform height and clearance verification at stations
- Level crossing and signal sighting distance checks
2mm
Railway gauge tolerance
5cm
Highway level tolerance
0.25m
Standard contour interval both types
Why Railway Tolerances Are Tighter
Trains run on fixed steel rails at high speed
Even small track irregularities translate directly into ride quality issues or safety concerns at speed. A road vehicle can absorb minor surface irregularities through suspension. A train cannot. This physical reality drives every accuracy requirement in railway survey work.

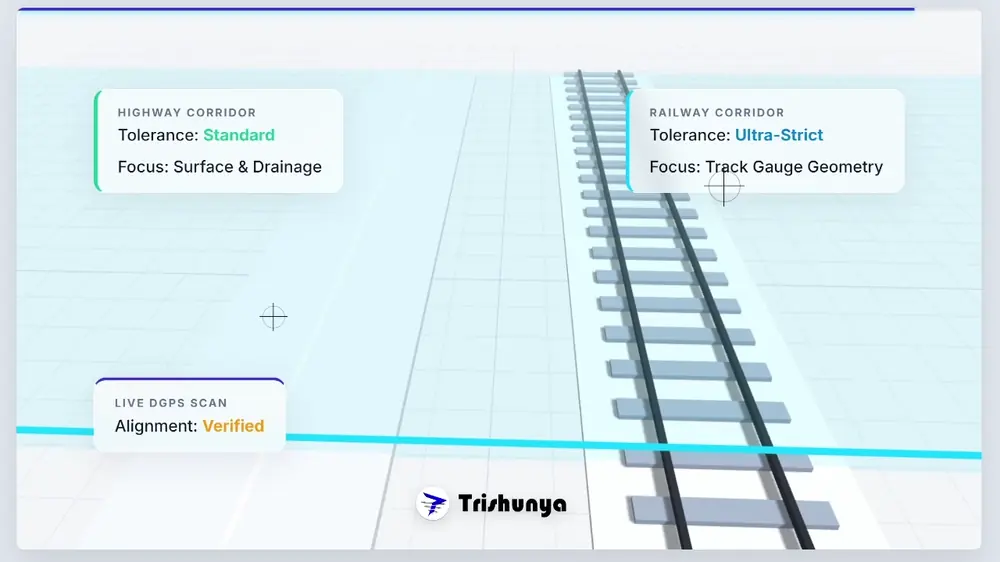

Shared Foundation, Different Detail
| Aspect | Similarity |
|---|---|
| Survey method | Both use DGPS, Total Station, and increasingly drone survey for corridor mapping |
| Deliverable format | Both produce topographic drawings, L/S sheets, and cross-sections |
| Control network | Both require established benchmarks and GCPs along the full corridor |
Whichever corridor type your project involves, the survey team needs to understand the specific engineering standards that apply, not just general topographic survey principles. Our teams have worked on both linear corridor projects and railway station topography, applying the correct tolerance standard for each.
