Microwave vs Light vs Infrared: EDM's 3 Wavebands
Not every EDM instrument shoots the same kind of beam. Some fire microwaves that shrug off fog like it does not exist. Some use pure light, fast but fussy about visibility. Most modern total stations use infrared, the reliable all-rounder. Picking the wrong one for the job is like sending a sprinter to run a marathon: technically capable, wrong tool.
Here is the fun part: think of these three wavebands as three superheroes, each with one standout power and one obvious weakness. Flip the cards below to meet them.
Meet the Three Powers
Microwave
The Fog Breaker📡 Microwave System
- Range: up to 150 km
- Wavelength: 3 cm
- Not limited to line of sight
- Unaffected by rain, fog, poor visibility
Light Wave
The Speedster💡 Light Wave System
- Range: up to 5 km (compact units)
- Uses visible light / lasers
- Distance capability drops in poor visibility
- Best in clear daytime conditions
Infrared
The Reliable One🔴 Infrared System
- Range: up to 3 km
- Strictly line-of-sight
- Affected by rain, fog, airborne dust
- Standard choice in most total stations
👆 Tap or click each card to flip and see its full stat sheet.
Why Infrared Won the Popularity Contest
Microwave EDM units were common decades ago for very long-range work, think regional control networks spanning tens of kilometres, because they punch through weather that would blind a light-based system. But they are bulkier and were largely built for that one long-range job, the kind of demand behind large-scale power transmission line survey corridors today.
Light wave systems are fast and simple, but visibility drags their usable range down fast, fog or haze and the number you get back becomes unreliable. Infrared struck the balance: compact enough to mount on a theodolite, accurate enough for topographic and construction surveys, and it became the default choice baked into virtually every modern total station.

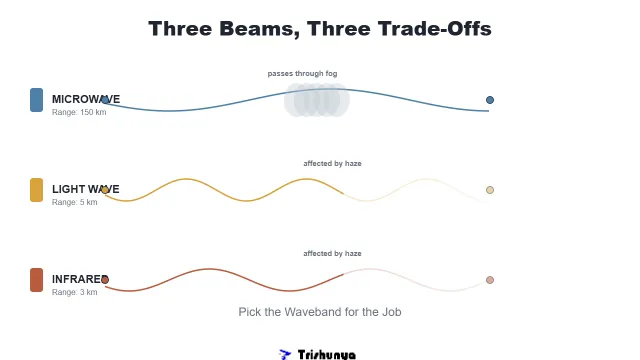

Range at a Glance
| Waveband | Typical Range | Best Suited For |
|---|---|---|
| Microwave | Up to 150 km | Long-range regional control, poor-weather zones |
| Light Wave | Up to 5 km | Clear-condition short to mid-range work |
| Infrared | Up to 3 km | Standard construction, topographic, control surveys |
The right waveband is not the "best" one on paper, it is the one that survives the weather your site actually gets.
Quick Check: Test Yourself
🎯 Which waveband is least bothered by fog and poor visibility?
Every EDM instrument used across a project, whether it is mounted on a total station for a linear road survey or paired with GPS control for a large land parcel, is built around one of these three wavebands. Knowing which one is doing the work behind the scenes helps explain why the same instrument performs brilliantly on one site and struggles on another.
Frequently Asked Questions
Most modern total stations use infrared systems because they offer a practical balance of range, compact size, and accuracy for everyday construction and topographic survey work.
Yes. Infrared and laser-based EDM readings are not dependent on daylight, since the instrument generates its own signal rather than relying on ambient light.
Microwave systems are bulkier and were mainly suited to very long-range regional work. As infrared and laser instruments improved in range and accuracy, they became the practical everyday choice for most survey tasks.
Heavy rain, fog, or airborne particles reduce accuracy and range for infrared and light wave systems since they depend on a clear line of sight, though light rain often still allows a usable reading.
Infrared typically reaches up to about 3 km, while compact light wave systems reach up to about 5 km under clear conditions, though actual range always depends on the specific instrument and atmospheric visibility.
