DSM vs DTM vs DEM: Clarifying All Three Elevation Models Together
These three acronyms get used interchangeably far too often, and the confusion causes real scope problems. Each one represents a genuinely different dataset, and understanding the distinction between all three at once, rather than just two, clears up the confusion for good.
Digital Surface Model represents the elevation of the very top surface visible from above, including tree canopy tops, building rooftops, and any structures. It is essentially the "first return" surface a drone or LiDAR sensor sees.
The Practical Difference Illustrated

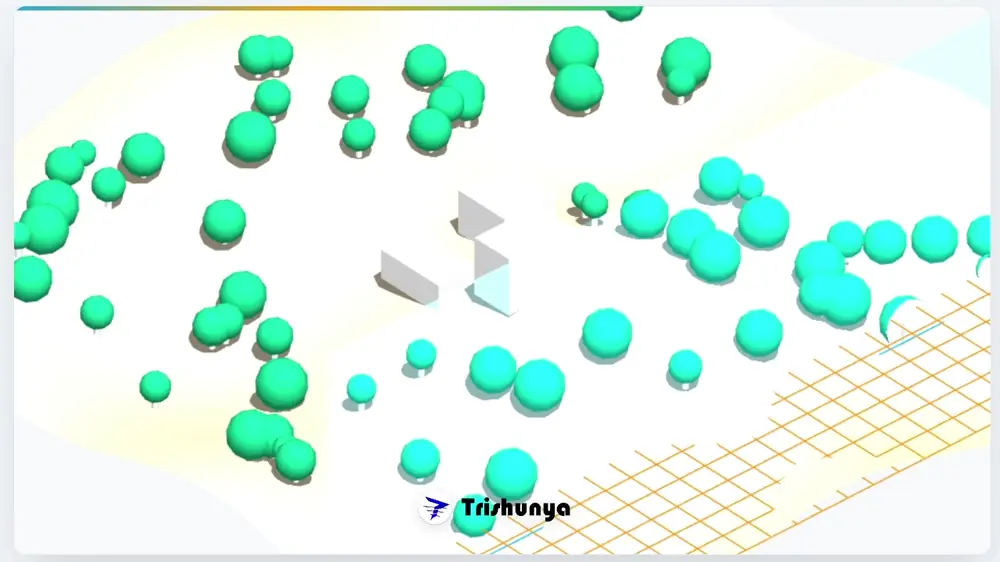

Over a forested area, DSM shows the canopy top. DTM shows the actual ground beneath it. The difference between them can be many metres.
3
Distinct elevation model types
30m+
Possible DSM-DTM gap in dense forest
1 term
"DEM" often confusingly used for both
Quick Reference Table
| Model | Represents | Common Use |
|---|---|---|
| DSM | Top visible surface (canopy, roofs) | Building height, canopy analysis |
| DTM | Bare ground only | Engineering design, drainage, grading |
| DEM (generic) | Either, depending on context | Confirm specifically before use |
Always clarify which model your project needs
When requesting survey data, specify DSM or DTM explicitly rather than the ambiguous term "DEM" alone. This single clarification prevents receiving the wrong elevation dataset for your engineering purpose.
We deliver clearly labeled DSM and DTM outputs on every project, avoiding the ambiguity that the generic "DEM" term often creates. Learn more about our drone survey deliverables.
