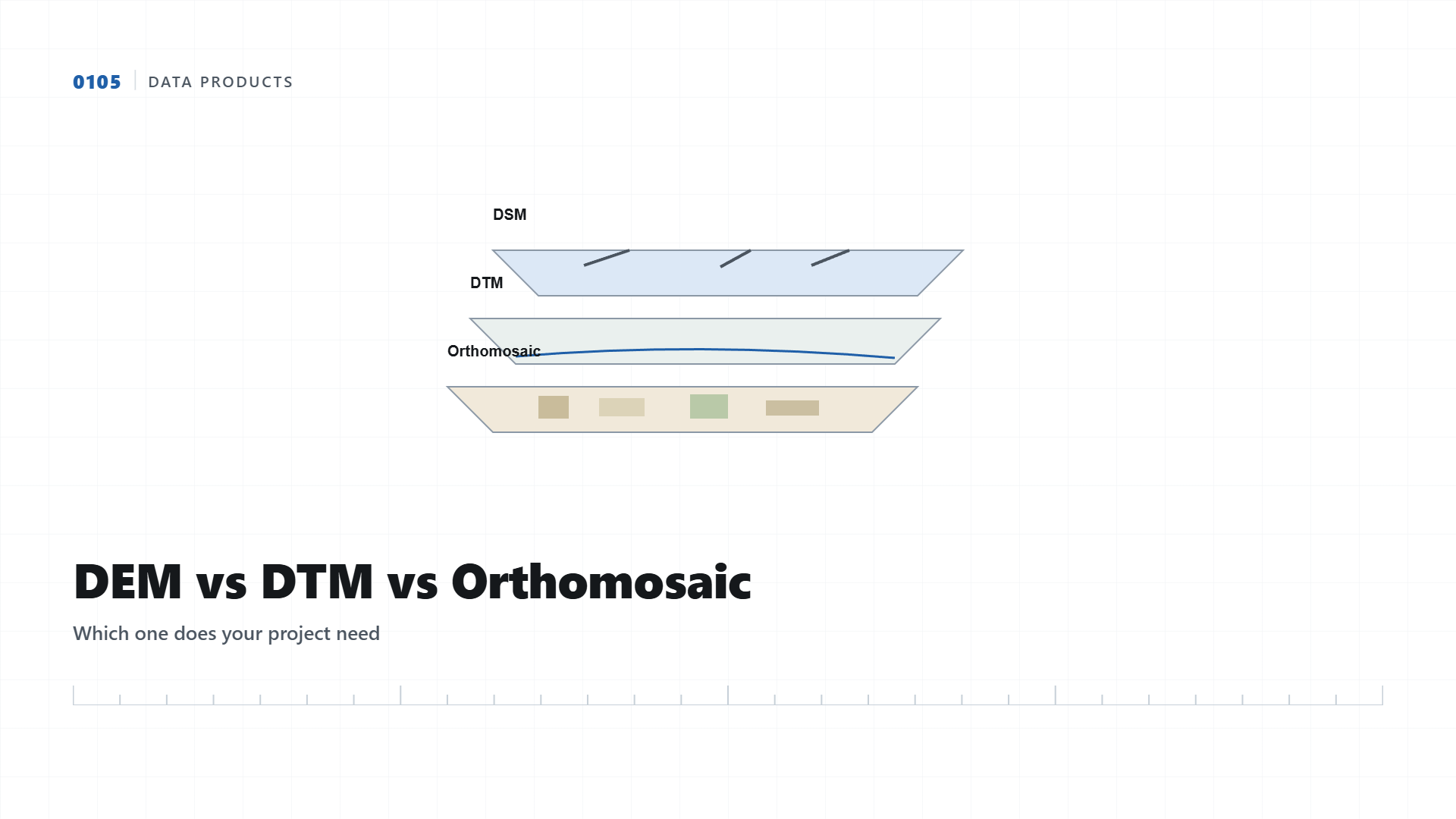

DEM vs DTM vs Orthomosaic: Which One Does Your Project Actually Need

Here is how confusion usually starts: a client asks for "the drone map" and receives a quote listing three different deliverables they have never heard of. DEM, DTM, and orthomosaic all come from the same drone flight, but they answer three completely different questions, and using the wrong one for your design stage causes real errors downstream.

Step 1: What the Drone Actually Captures

A survey drone flies a grid pattern taking overlapping photographs, typically 70 to 80 percent overlap between consecutive images. Photogrammetry software then triangulates matching points across hundreds of photos to reconstruct a dense 3D point cloud of everything visible from above, buildings, trees, vehicles, and ground, all mixed together in one dataset.

Same site, two different elevation outputs: DEM on the left includes structures, DTM on the right is bare earth only.

The Three Outputs, Explained One at a Time

Which One Do You Actually Need

How Ground Filtering Actually Separates Them

The same raw point cloud produces both the DEM and DTM, the only difference is a classification step that flags which points belong to the ground versus vegetation and structures. This is why ordering both from the same flight costs very little extra over ordering one, since the expensive part, flying and processing, has already happened.

Finished orthomosaic used as a base map layer in the project's GIS dashboard.

Knowing which output your engineer actually needs, before the drone even takes off, saves a re-order and a second site mobilization. If you are unsure which combination fits your project, tell us the end use, alignment design, earthwork, or visualization, and we will recommend the right deliverable set for that flight.
