Point to any spot on your desk right now. You just used a coordinate system, whether you realized it or not, maybe "two inches right, three inches up" from the corner. That's the entire idea behind every coordinate system ever invented: pick a starting point, then describe distance in some consistent language.

Surveyors and GIS engineers use two very different "languages" for this. One draws a grid. The other draws a compass. Neither is more correct than the other, they're just built for different jobs, and knowing which one is talking to you is the difference between reading a map fluently and squinting at numbers that mean nothing.

🗺️ Cartesian: The Grid Paper Language

Cartesian coordinates are the graph paper you grew up with. Named after René Descartes, they describe a point using two perpendicular measurements: how far right or left (x), and how far up or down (y). Add a third axis (z) and you've got height too, which is exactly how total stations and drone photogrammetry record 3D ground points on a job site.

The rule is strict but simple: two families of straight lines, crossing at right angles, dividing the page into four quadrants. Top-right is positive-positive. Bottom-left is negative-negative. It's the same logic whether you're plotting a survey benchmark or a spreadsheet chart.

🧭 Polar: The Compass Language

Polar coordinates throw the grid away entirely. Instead of "right and up," they ask two different questions: how far away, and in what direction? A point is defined by a distance (r) from a fixed origin, and an angle (θ) measured from a reference line.

This is exactly how a total station actually measures the world in the field, not by counting grid squares, but by reading a horizontal angle and a slope distance from the instrument to the prism. The Cartesian coordinates you see in the final survey report are calculated afterward, from raw polar readings.

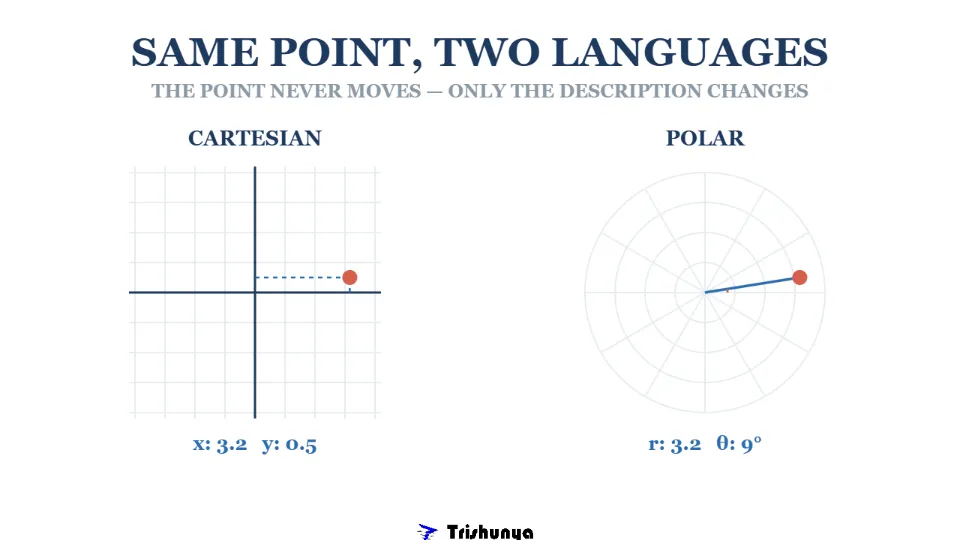

Notice something important in that tool: the point never moved. Only the description changed. That's the whole lesson of this article in one interaction. Coordinate systems aren't facts about the world, they're languages for reporting facts about the world, and every one of them has a translation formula to every other one.

Every field instrument speaks polar. Every finished map speaks Cartesian. Surveying is largely the science of translating between the two, accurately, every single time.

🔄 Why the Direction of the Angle Matters

Here's a detail that trips people up: mathematicians measure angles counter-clockwise from the positive x-axis. Surveyors and navigators measure clockwise from north. Same idea, opposite convention, and mixing them up is a classic source of field errors when raw instrument data gets fed into mapping software that assumes the wrong convention.

From the Field

On a typical topographic survey, our field teams set up a total station and shoot hundreds of points across a site in a single day, every one of them logged first as a horizontal angle and distance from the instrument. That raw polar data only becomes a usable site plan once it's converted into Cartesian coordinates tied to a known grid, which is precisely the transformation math this whole coordinate system idea is built to handle. Get the convention wrong at that stage and an entire day's fieldwork can end up rotated or mirrored on the final drawing.

Understanding this distinction isn't just academic. It's the foundation underneath every drone orthomosaic, every GIS layer, and every stakeout point marked on a construction site. Once (x,y) and (r,θ) stop feeling like two separate topics and start feeling like two dialects of the same language, the rest of coordinate geometry gets a lot less intimidating.
